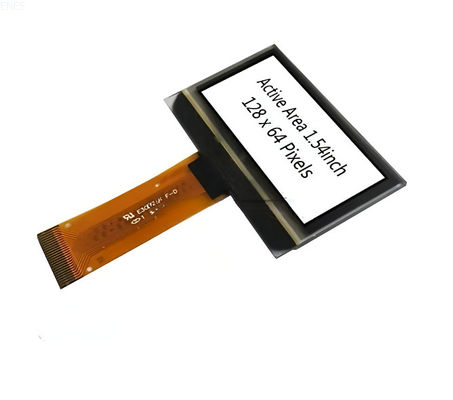

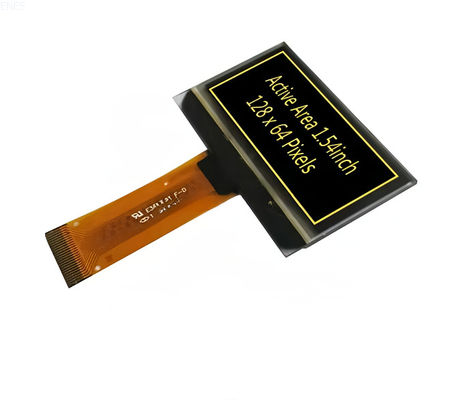

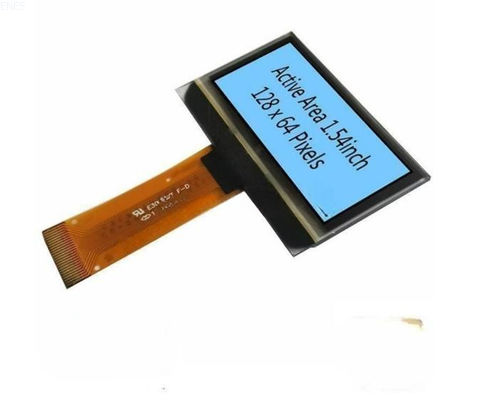

1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116

1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116
1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116
video play

Large Image :  1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX154PM-2864KSWBG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 2-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 1.54 Inch Display Mode:: Passive Matrix
Display Color: Monochrome (White) Drive Duty: 1/64 Duty
Outline Drawing: According To The Annexed Outline Drawing Number Of Pixels: 128 X 64
Panel Size: 42.04x27.22 X1.45 (mm) Active Area: 35.052 X17.516(mm)
Pixel Pitch: 0.274 X 0.274 (mm) Pixel Size: 0.249 X0.249(mm)
Driver IC: CH1116 FPC Number: NFP1116-03
Interface: 8-bit 68XX80XX Parallel, 4-Wire SPl, 12C FPC Connecting Mode: 24 Pin Soldering FPC
Luminance: 100cd/m2 Weight: 3.28 (g)
Operating Temperature: -40~85°C
Highlight:

128x64 OLED Display

,

24 Pin OLED Display

,

1.54'' display lcd oled

1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116
Product Specifications
Attribute Value
Size 1.54 inch
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/64 Duty
Outline Drawing According to the annexed outline drawing
Number of Pixels 128 x 64
Panel Size 42.04x27.22 x1.45 (mm)
Active Area 35.052 x17.516(mm)
Pixel Pitch 0.274 x 0.274 (mm)
Pixel Size 0.249 x0.249(mm)
Driver IC CH1116
FPC Number NFP1116-03
Interface 8-bit 68XX80XX Parallel, 4-Wire SPI, I2C
FPC Connecting Mode 24 Pin Soldering FPC
Luminance 100cd/m2
Weight 3.28 (g)
Operating Temperature -40~85°C
Product Details

X154-2864KSWBG01-C24 Folding Type OLED Display Module with pixel number: 128 x 64, monochrome display, COG package.

Active Area / Memory Mapping & Pixel Construction
1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116 0
Mechanical Drawing
1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116 1
Pin Definition
1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116 2 1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116 3 1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116 4
Recommended Components
  • C1, C2: 1μF / 16V, X5R
  • C3: 2.2μF /25V
  • C4: 4.7μF / 25V, X7R
  • C5: 0.1μF/ 25V, X7R
  • R1, R2: 47kΩ
  • R3: 910KΩ, R3 = (Voltage at IREF - VSS) / IREF
  • Q1: FDN338P
  • Q2: FDN335N

Notes: VDD: 1.65V~3.3V VCC_IN: 11.5~12.5V

1.54'' 128x64 Pixels White Blue 24 Pin OLED Display I2C SPI Parallel Interface CH1116 5
