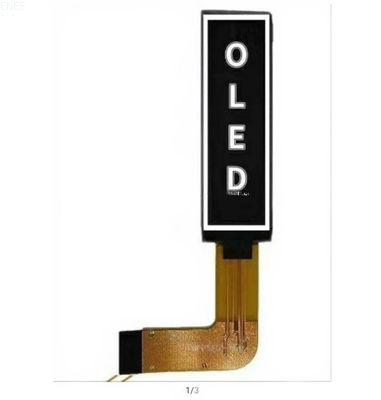

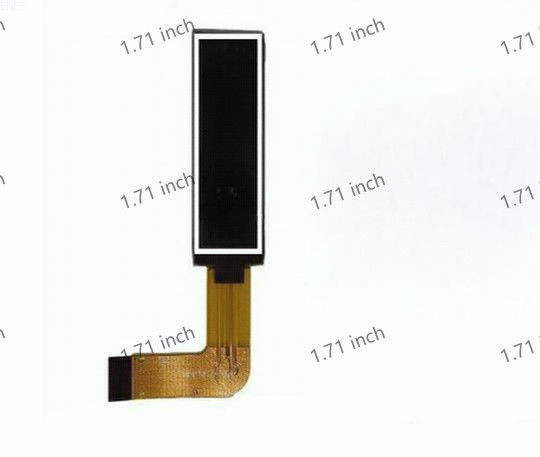

1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface

1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
video play

Large Image :  1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX171PM2832ASWWG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 2-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 1.71 Inch Display Mode:: Passive Matrix
Display Color: Monochrome (White) Drive Duty: 1/32 Duty
Outline Drawing: According To The Annexed Outline Drawing Number Of Pixels: 128 X 32
Panel Size: 50.5 X15.75 X2.0(mm) Active Area: 42.218 X10.538 (mm)
Pixel Pitch: 0.33 X 0.33 (mm) Pixel Size: 0.308 X 0.308 (mm)
Driver IC: SSD1312 FPC Number: NFP1312-41
Interface: 3/4-wire SPl, 12C FPC Connecting Mode: 18 Pin Soldering FPC
Operating Temperature: -40°c~70°c
Highlight:

1.71'' OLED LCD Display

,

SSD1312 OLED LCD Display

,

128×32 oled monochrome display

1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
Product Specifications
Attribute Value
Size 1.71 inch
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/32 Duty
Number of Pixels 128 × 32
Panel Size 50.5 × 15.75 × 2.0 (mm)
Active Area 42.218 × 10.538 (mm)
Pixel Pitch 0.33 × 0.33 (mm)
Pixel Size 0.308 × 0.308 (mm)
Driver IC SSD1312
FPC Number NFP1312-41
Interface 3/4-wire SPI, I2C
FPC Connecting Mode 18 Pin Soldering FPC
Operating Temperature -40°C ~ 70°C
Product Details

1.71 Inch OLED Monochrome Display Module with IC SSD1312 featuring 128 × 32 resolution and Serial Peripheral Interface (SPI) 18pin configuration. Model: X171-2832ASWWG01-C18 Folding Type OLED Display Module.

Recommended Components
  • C1: 0.1μF / 6.3V, X5R
  • C2: 4.7μF / 6.3V, X5R
  • C3: 2.2μF / 16V, X7R
  • C4: 4.7μF / 16V, X7R
  • C5: 0.1μF / 16V, X7R
  • R3: 560KΩ, R3 = (Voltage at IREF - VSS) / IREF
  • R2, R1: 47kΩ
  • Q1: FDN338P
  • Q2: FDN335N

Note: VDD: 1.65~3.5V (should match MPU I/O voltage), VCC_in: 11.5~12.5V

Active Area & Memory Mapping
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 0

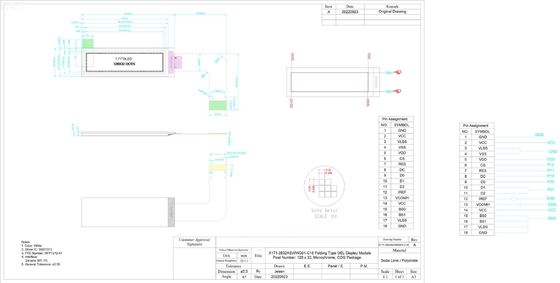

Mechanical Drawing
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 1
Pin Definition
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 2
Optical & Electrical Characteristics
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 3
Frequently Asked Questions
How is product quality controlled?
Our professional quality team performs 100% inspection on all products before shipment.
What is the warranty period?
Standard warranty is one year (varies by product). We guarantee against manufacturer defects, with liability limited to replacement of defective products.
What certifications are available?
Products are certified RoHS, CE, and SGS compliant.
Can you provide product drawings and test reports?
We can provide all necessary product documentation and test reports upon request.
Is the product specification in English?
All product specifications are provided in English.
