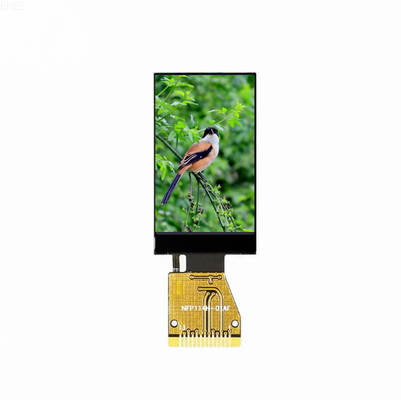

1.14 inch 135 RGB×240 Dots TFT LCD Display Module Screen Small Size

N114-2413THBIG01-H13 is a small-sized 1.14-inch IPS wide-angle TFT-LCD display module. This small-sized TFT-LCD panel has a resolution of 135×240 pixels, built-in ST7789V3 controller IC, supports 4-wire SPI interface, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 400 cd/m², and contrast of 800.

One of the standout features of this 1.14-inch TFT LCD display is its built-in IPS (In-Plane Switching) panel. This technology offers a wider viewing angle of left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), allowing users to enjoy clear, vivid visuals from all angles. Whether you're watching videos, viewing photos or playing games, the display ensures a superior visual experience.

N114-2413THBIG01-H13 is very suitable for applications such as wearable devices, medical instruments, white products, video systems, smart locks. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.

The N114-2413THBIG01-H13 TFT-LCD panel features superior specifications, advanced technology and versatile compatibility, making it a reliable and high-performance solution for all your display needs. Whether you are creating a new prototype or upgrading an existing device, this IPS TFT-LCD panel will take the user experience to new heights. Experience the future of visual displays with this state-of-the-art TFT-LCD panel.

Key Selling Points

• Super Compact: At just 1.14 inches, it slips easily into wearable tech or mini devices — perfect when every millimeter counts.

• High-Res RGB Display: With 240×135 full-color pixels, everything looks crisp and vibrant. Text, icons, you name it — they all pop.

• Great Viewing Experience: Thanks to TFT tech, you get wide viewing angles, fast response, and solid contrast. It stays readable, even in bright light.

• Low Power, Long Life: Sips power to keep your battery happy, and it’s built to last — we're talking 10,000+ hours of reliable operation.

• Easy to Integrate: Works with standard interfaces like SPI, and plays nicely with Arduino, Raspberry Pi, and other common controllers. Get up and running in no time.

Why It’s a Smart Choice

• Saves Space: Helps you design smaller, sleeker products — ideal for wearables and portable tools.

• Top-Notch Image Quality: Sharp details and true colors make your UI look pro.

• Plug & Play Friendly: No complex wiring or special drivers needed. Our docs and sample code have you covered.

• Energy Efficient: Runs on very little power — great for anything battery-powered.

• Tough & Dependable: Handles rough conditions, from temperature swings to bumps and shakes.

FAQs

Q: What interface does it use? How do I hook it up?

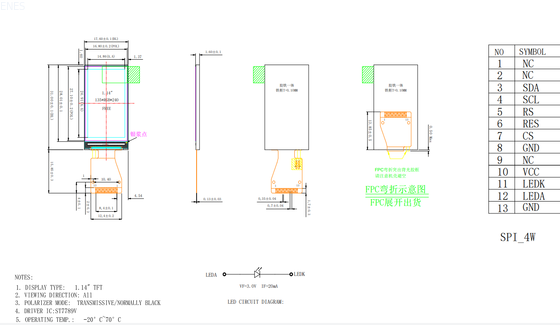

A: It usually supports SPI — super simple to connect. We include pinout diagrams and sample code for popular boards like Arduino.

Q: How’s the power consumption? Good for battery-powered devices?
A: Absolutely. It runs on minimal power, and you can dim the backlight to save even more. Perfect for gadgets that need to last all day.

Q: Is the resolution really 240×135? How’s the clarity?
A: Yep — 240×135 pixels with full RGB color. Everything looks clean and sharp, even small text or detailed graphics.

Q: Does it come with touch support? Do I need extra parts to drive it?
A: The basic version is display-only, but touch is an option. And nope — no extra components needed. Just connect and go.

Q: Can I customize it? What’s the lead time?
A: We stock standard units for quick shipping. Need something special? Hit us up — we can tweak the specs to fit your project.
