0.42'' Low Energy Consumption OLED LCD Display Wide Viewing Angles OLED LCD

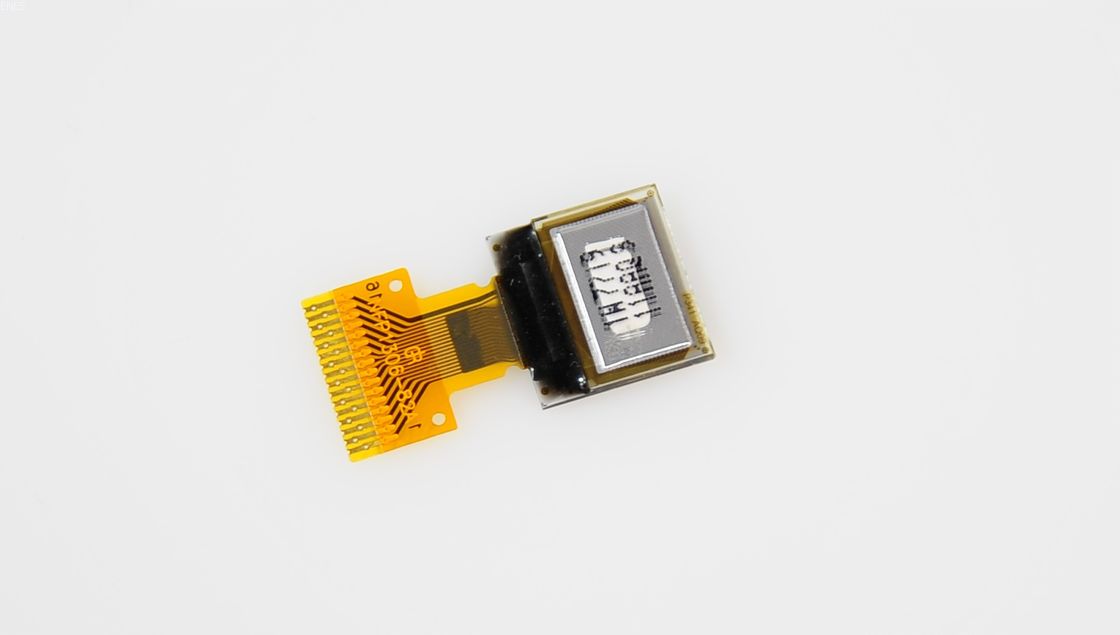

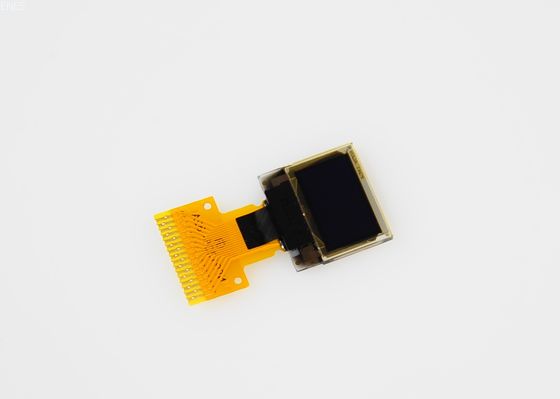

Large Image : 0.42'' Low Energy Consumption OLED LCD Display Wide Viewing Angles OLED LCD

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	N042-7240TSWEG01-H16

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	2-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	0.42 Inch	Display Mode::	Passive Matrix
Display Color:	Monochrome (White)	Drive Duty:	1/40 Duty
Outline Drawing:	According To The Annexed Outline Drawing	Number Of Pixels:	72 × 40
Panel Size:	0.108 × 0.11 (mm)
Highlight:	0.42'' OLED LCD Display , Low Energy Consumption OLED LCD Display , Wide Viewing Angles OLED LCD

0.42'' Low Energy Consumption OLED LCD Display Wide Viewing Angles OLED LCD

Product Specifications

Attribute	Value
Size	0.42 inch
Display Mode	Passive Matrix
Display Color	Monochrome (White)
Drive Duty	1/40 Duty
Outline Drawing	According to the annexed outline drawing
Number of Pixels	72 × 40
Panel Size	0.108 × 0.11 (mm)

Product Description

Small-size OLED (Organic Light-Emitting Diode) displays are a widely used display technology in smart locks, smart home appliances, and other small electronic devices.

Compared to traditional LCD screens, OLED offers several significant advantages:

Self-emissive property: Each pixel can emit light independently without requiring a backlight, enabling OLED displays to show deeper blacks and higher contrast ratios.
Strong color performance: Capable of presenting richer, more saturated colors for more vivid and realistic images.
Wide viewing angles: Maintains good image quality even when viewed from the side, without noticeable color shifts or brightness changes.
Fast response time: Particularly good for displaying dynamic content, making it suitable for fast-moving images like games or video playback.
Low energy consumption: Since there's no backlight component and dark pixels can be turned off to save power, OLED is generally more energy-efficient than LCD.
Ultra-thin design: The simple structure allows for extremely thin designs, contributing to more compact and aesthetically pleasing products.

Technical Documentation

Note 1: All the above voltages are on the basis of "VSS = 0V".

Note 2: When this module is used beyond the above absolute maximum ratings, permanent breakage of the module may occur. Also, for normal operations, it is desirable to use this module under the conditions according to Section 3. "Optics & Electrical Characteristics". If this module is used beyond these conditions, malfunctioning of the module can occur and the reliability of the module may deteriorate.

Note 3: The defined temperature ranges do not include the polarizer. The maximum withstood temperature of the polarizer should be 80℃.

Note 4: VCC = 7.25V, Ta = 25°C, 50% Checkerboard. Software configuration follows Section 4.4 Initialization. End of lifetime is specified as 50% of initial brightness reached. The average operating lifetime at room temperature is estimated by the accelerated operation at high temperature conditions.

Frequently Asked Questions

If there is a problem with the product, what is the after-sales service like?

If customers encounter any technical problems during use, our after-sales service team will provide remote online technical support to ensure that customers can solve the problem smoothly.

How to customize the product?

Customers can customize the module shape, backlight brightness, LCD interface, etc. according to their own needs. We will provide personalized solutions according to the specific requirements of customers.

How to get technical support?

If customers need technical support when using TX080HD-30MB-CT, they can contact our technical team by email, and we will reply within 24 hours.

Do you provide samples?

Yes, we support sample application, and customers can get samples for testing and evaluation before placing an order.
