1.3'' 128x64 OLED LCD Display 30Pin Monochrome PMOLED Screen SPI I2C Interface SH1106G

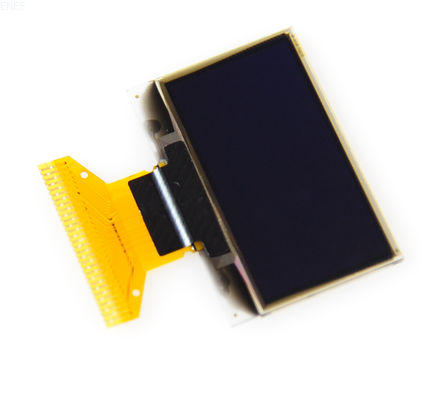

Large Image : 1.3'' 128x64 OLED LCD Display 30Pin Monochrome PMOLED Screen SPI I2C Interface SH1106G

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	THP12864-AM320

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	2-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	1.3inch	Outline Size:	35.5(L)×31.0(W)×3.1(T)
Display Color:	White (monochrome)	Display Type:	128×64 Dots
View Area:	31.42×16.7mm	Display Area:	29.42×14.7
Dots Size:	0.21×0.21	Dots Pitch:	0.23×0.23
View Direction:	Full View	Interface Mode:	I2C
VCC&VPP(Type):	3.3 V & 9.0V	Luminance:	110cd/m2
Operation Temp:	-40~+85℃	Storage Temp:	-45~+90℃
Aperture Rate:	83.3%	Active Area:	29.42*14.7mm
Drive LC:	SH1106G	Drive Method:	VCC=3.3V~4.2V/I0VDD=3.3V
Display:	OLED(White)
Highlight:	128x64 OLED LCD Display , 1.3'' OLED LCD Display , SH1106G pmoled screen

1.3'' 128x64 OLED LCD Display 30Pin Monochrome PMOLED Screen SPI I2C Interface SH1106G

Product Specifications

Attribute	Value
Size	1.3inch
Outline Size	35.5(L)×31.0(W)×3.1(T)
Display Color	White (monochrome)
Display type	128×64 dots
View Area	31.42×16.7mm
Display Area	29.42×14.7
Dots size	0.21×0.21
Dots pitch	0.23×0.23
View Direction	Full View
Interface mode	I2C
VCC&VPP(Type)	3.3 V & 9.0V
Luminance	110cd/m2
Operation Temp	-40~+85℃
Storage Temp	-45~+90℃
Aperture Rate	83.3%
Active Area	29.42*14.7mm
Drive lC	SH1106G
Drive Method	VCC=3.3V~4.2V/I0VDD=3.3V
Display	OLED(White)

Product Features

SH1106 controller
Supports maximum 128 X 64 dot matrix panel
Embedded 128 X 64 bits SRAM
Operating voltage:
- Logic voltage supply: VDD= 3.3V - 4.2V
- OLED Operating voltage supply: Internal VPP generator = 6.4V - 9.0V
Maximum segment output current: 200mA
Maximum common sink current: 27mA
4-wire serial peripheral interface, 400KHz fast I2C bus interface
Programmable frame frequency and multiplexing ratio
Row re-mapping and column re-mapping (ADC)
Vertical scrolling
On-chip oscillator
Programmable Internal charge pump circuit output
256-step contrast control on monochrome passive OLED panel
Low power consumption (Sleep mode: <5mA)

Pin Connections

Pin No.	Pin Out	I/O	Description
1	VDD	3.3~4.2V	Power Supply for Display Module Circuit.
2	GND	P	Ground.
3	SCK	I	Serial clock input PIN.
4	SDA	I	Serial data input PIN.

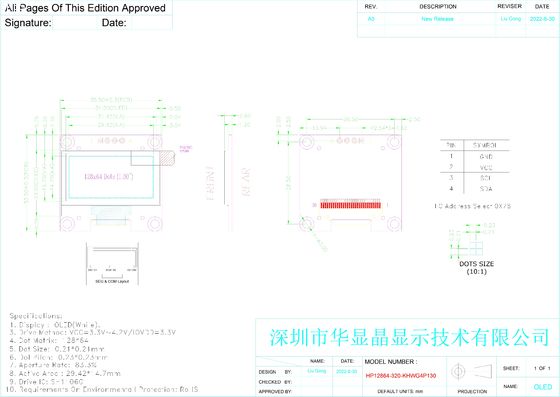

Panel Layout Diagram

Block Diagram

Absolute Maximum Ratings

ITEM	SYMBOL	MIN	MAX	UNIT
POWER SUPPLY FOR LOGIC	VDD-VSS	-0.3	5.5	V
POWER SUPPLY FOR DRIVE IC	VPP-VSS	-0.3	14.0	V
INPUT VOLTAGE	VDD-VSS	-0.3	6.0	V
SUPPLY CURRENT	Icc	-0.3	200	mA
Operating Temperature	Top	-40	85	℃
Storage Temperature	Tstg	-45	90	℃

Note 1: All the above voltage are on the basis of "GND=0V".

Note 2: When this module is used beyond the above absolute maximum ratings, permanent breakage of the module may occur. Also, for normal operations, it is desirable to use this module under the conditions according to Section 3. "Electrical Characteristics". If this module is used beyond these conditions, malfunctioning of the module can occur and the reliability of the module may deteriorate.
