1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface

1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
video play

Large Image :  1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX171PM2832ASWWG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 2-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 1.71 Inch Display Mode:: Passive Matrix
Display Color: Monochrome (White) Drive Duty: 1/32 Duty
Outline Drawing: According To The Annexed Outline Drawing Number Of Pixels: 128 X 32
Panel Size: 50.5 X15.75 X2.0(mm) Active Area: 42.218 X10.538 (mm)
Pixel Pitch: 0.33 X 0.33 (mm) Pixel Size: 0.308 X 0.308 (mm)
Driver IC: SSD1312 FPC Number: NFP1312-41
Interface: 3/4-wire SPl, 12C FPC Connecting Mode: 18 Pin Soldering FPC
Operating Temperature: -40°c~70°c
Highlight:

1.71'' OLED LCD Display

,

SSD1312 OLED LCD Display

,

128×32 oled monochrome display

1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface
Product Specifications
Attribute Value
Size 1.71 inch
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/32 Duty
Outline Drawing According to the annexed outline drawing
Number of Pixels 128 × 32
Panel Size 50.5 × 15.75 × 2.0 (mm)
Active Area 42.218 × 10.538 (mm)
Pixel Pitch 0.33 × 0.33 (mm)
Pixel Size 0.308 × 0.308 (mm)
Driver IC SSD1312
FPC Number NFP1312-41
Interface 3/4-wire SPI, I2C
FPC Connecting Mode 18 Pin Soldering FPC
Operating Temperature -40°C ~ 70°C
Product Details

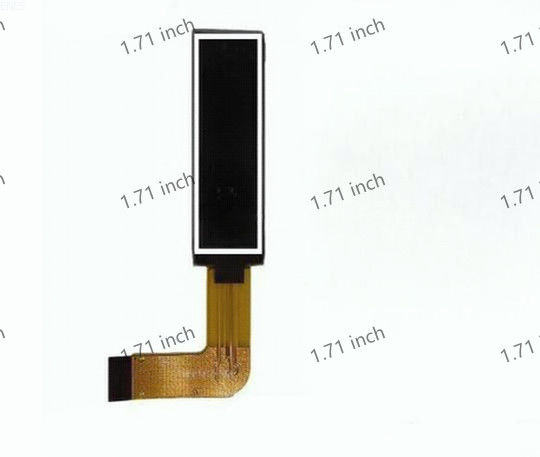

1.71 Inch OLED Monochrome Display With IC SSD1312 128 × 32 Resolution Serial Peripheral Interface SPI 18pin

X171-2832ASWWG01-C18 Folding Type OEL Display Module Pixel Number: 128 × 32, Monochrome, COG Package

Recommended Components:

  • C1: 0.1μF / 6.3V, X5R
  • C2: 4.7μF / 6.3V, X5R
  • C3: 2.2μF / 16V, X7R
  • C4: 4.7μF / 16V, X7R
  • C5: 0.1μF / 16V, X7R
  • R3: 560KΩ, R3 = (Voltage at IREF - VSS) / IREF
  • R2, R1: 47kΩ
  • Q1: FDN338P
  • Q2: FDN335N

Notes: VDD: 1.65~3.5V, it should be equal to MPU I/O voltage. VCC_in: 11.5~12.5V

Active Area / Memory Mapping & Pixel Construction
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 0

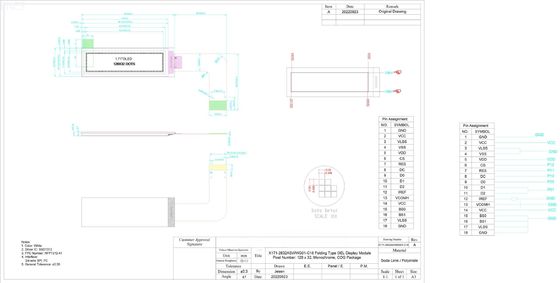

Mechanical Drawing
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 1
Pin Definition
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 2
Optics & Electrical Characteristics
1.71'' OLED Monochrome Display With IC SSD1312 128×32 Serial Peripheral Interface 3
Frequently Asked Questions
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products. We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q: What certification could provide?
A: Products by RoHS, CE, SGS certification.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Q: The product specification is in Chinese or English?
A: The version of product specification is English.
