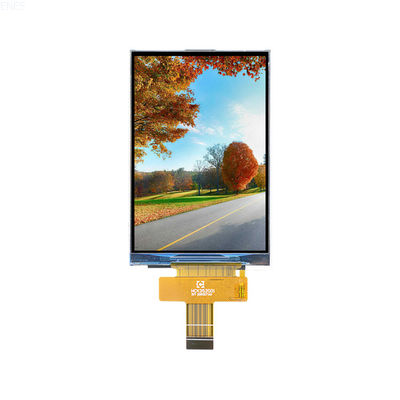

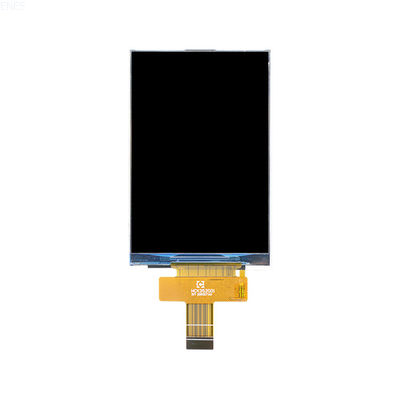

320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch

Large Image : 320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T35K2001

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

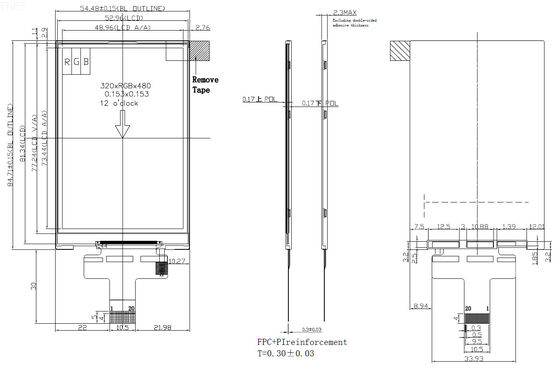

Size:	3.5 Inch	Dimension:	54.48（W）* 84.71（H） * 2.30(T)
Active Area:	48.96* 73.44 Mm	Number OfDots:	320 * RGB * 480
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ST7796S	Interface Type:	MIPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	6 LEDs	Luminance:	300/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	320 X 480 tft lcd module , MIPI tft lcd module , 3.5in resistive lcd display

320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch

Product Specifications

Attribute	Value
Size	3.5 inch
Dimension	54.48（W）* 84.71（H） * 2.30(T)
Active Area	48.96* 73.44 mm
Number Of Dots	320 * RGB * 480
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ST7796S
Interface Type	MIPI
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	6 LEDs
Luminance	300/cd
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

3.5inch 320x480 Resolution IPS MIPI TFT LCD Module Resistive LCD Display

The model number T35K2001 represents a color active-matrix thin-film transistor (TFT) liquid crystal display (LCD). It uses amorphous silicon TFT as the switching device. This model consists of a TFT liquid crystal panel, driving circuit, resistive touch screen and a backlight system. This TFT liquid crystal display has a diagonal measurement of 3.5 inches and an active display area of 320*480 dots (320 horizontal × 480 vertical pixels) with a resolution of 320×480.

Pin Assignments

Electro-Optical Characteristics

Note: Color chromaticity is for LCD only.

Frequently Asked Questions

How is the quality of the products controlled?

Our company has a professional quality team. All products are 100% inspected before leaving the factory.

How long is the warranty and service period for the products?

Generally, the warranty period is one year. This depends on different products. We guarantee that our products have no defects from the manufacturer. The liability under this guarantee item is limited to replacing any products that are found to have defects during normal use.

What can the company provide regarding product certification?

The products have passed RoHS, CE certification, ISO9001, and ISO14001 reports.

Can you provide product drawings and test reports?

According to customer needs, our company can provide relevant product materials and test reports.

Is the product manual in Chinese or English?

The product manual is in English.

What is the minimum order quantity?

All our products have minimum order quantity requirements. For detailed information, please contact our sales staff.

Do you accept OEM processing?

Yes, we can do OEM.

What are your products mainly used for?

Our company's products are widely used in human-machine interfaces, handheld terminals, household medical products, instruments and meters, etc., electrical appliances, white goods, fuel dispensers, automobiles, AOI, etc.
