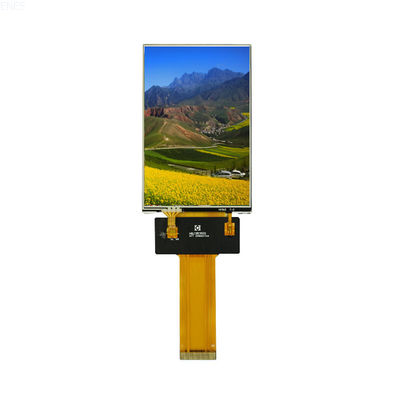

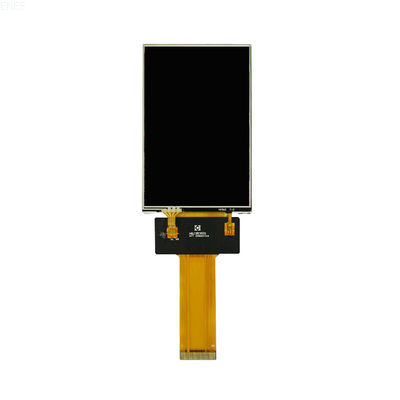

320x480 3.5 Inch TFT LCD Display IPS MCU ST7796S IC Custom LCD Panel

Large Image : 320x480 3.5 Inch TFT LCD Display IPS MCU ST7796S IC Custom LCD Panel

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T35J3501

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

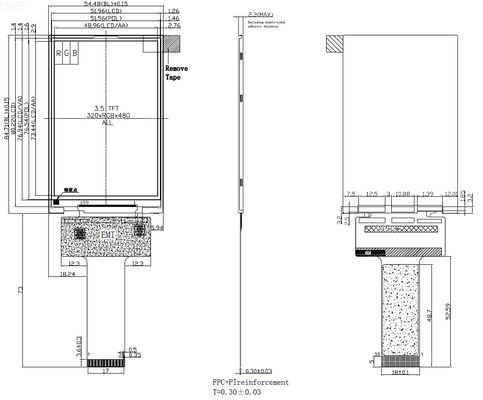

Size:	3.5 Inch	Dimension:	54.48（W）* 84.71（H） * 2.30(T)
Active Area:	48.96* 73.44 Mm	Number OfDots:	320 * RGB * 480
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	ST7796S	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	6 LEDs	Luminance:	250/cd~300/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	320x480 3.5 inch tft lcd display , IPS 3.5 inch tft lcd display , ST7796S 3.5 inch lcd display

320x480 3.5 Inch TFT LCD Display IPS MCU ST7796S IC Custom LCD Panel

Product Specifications

Attribute	Value
Size	3.5 inch
Dimension	54.48（W）* 84.71（H） * 2.30(T)
Active Area	48.96* 73.44 mm
Number Of Dots	320 * RGB * 480
LCD Type	a-Si TFT
Viewing Direction	ALL
Driver IC	ST7796S
Interface Type	MCU
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	6 LEDs
Luminance	250/cd~300/cd
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

3.5 Inch 320x480 IPS MCU TFT LCD Module ST7796S IC Customized LCD Panel

Pin Assignments

Electro-Optical Characteristics

Product Features

High transmittance glass substrate: Clear, bright, distinct, and colorful display with low-power driver IC circuit that reduces power consumption and user costs.
Ultra-thin body: Small size, thin thickness, light weight, and easy to carry and use.
Low energy consumption: Saves power and does not generate high temperatures (main power consumption and heat generation parts are in the backlight tube or LED).
Low radiation: Low working voltage and radiation for healthier and more comfortable use.
Soft and comfortable screen: No flicker reduces eye strain and fatigue.
Uniform brightness: Maintains high definition even under strong outdoor light.

Frequently Asked Questions

1. Can you provide some samples?

Yes, we can offer samples for you and you just pay some delivery fee.

2. How can I get samples?

Send inquiry → Offer quotation → Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect

3. How can I place an order?

If you confirm samples ok, please send us your purchase order by Email or Fax, then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, please do not hesitate to contact us.

4. Can you design the LCD in accordance with our demand?

Sure, we have professional team to provide ODM&OEM service and any requirements, please do not hesitate to tell me.

5. What is your payment method?

We support make payment via TT/West Union/Paypal, 50%-100% deposit in advance and balance before shipping as order amount.
