3.2 Inch 240x320 Resolution LCD Display Module OEM MCU TFT Custom

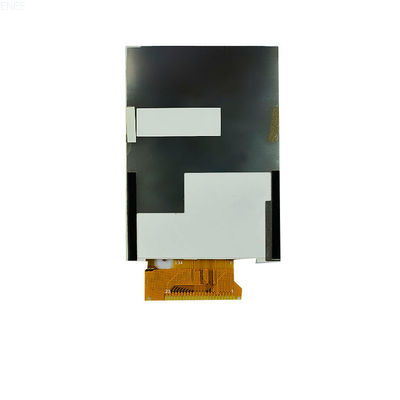

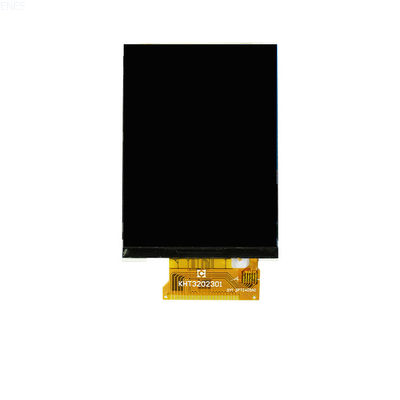

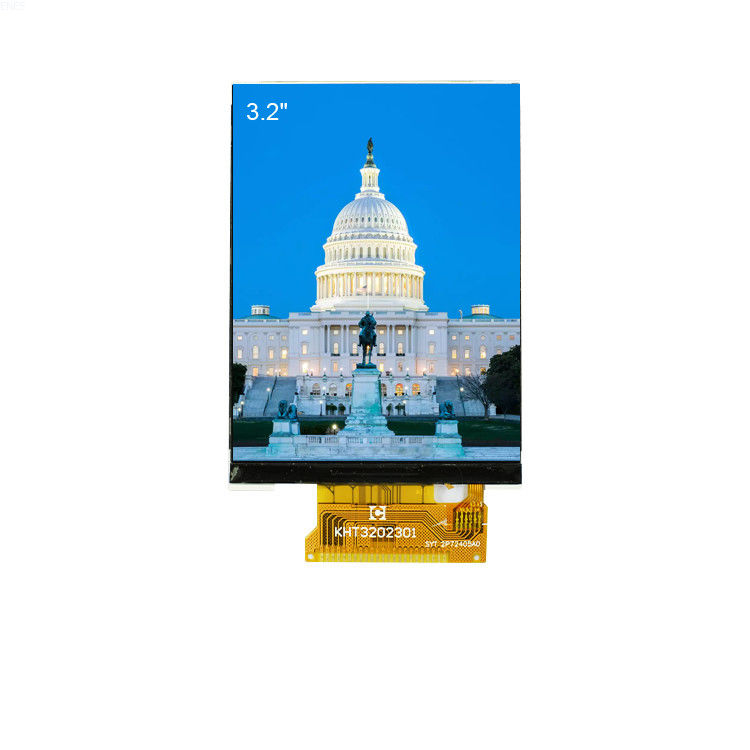

Large Image : 3.2 Inch 240x320 Resolution LCD Display Module OEM MCU TFT Custom

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T320T2301F

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	3.2 Inch	Dimension:	52.28（W）* 73.04（H） * 2.35(T)
Active Area:	48.60* 64.80 Mm	Number OfDots:	240 * RGB * 320
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	GC9306	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	5 LEDs	Luminance:	300/cd~350/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	240x320 lcd display module , 3.2in lcd display module , TFT lcd 3.2 inch

3.2 Inch 240x320 Resolution LCD Display Module OEM MCU TFT Custom

Product Specifications

Attribute	Value
Size	3.2 inch
Dimension	52.28(W) × 73.04(H) × 2.35(T) mm
Active Area	48.60 × 64.80 mm
Number Of Dots	240 × RGB × 320
LCD Type	a-Si TFT
Viewing Direction	12 O'clock
Driver IC	GC9306
Interface Type	MCU
Operating Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Backlight Type	5 LEDs
Luminance	300/cd ~ 350/cd
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

The 3.2 Inch TFT Custom LCD Display Module features a 240×320 resolution and is available for OEM customization. The GC9306 is a color active-matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as the switching device.

This display module consists of a TFT liquid crystal panel, driver IC, backlight, and FPC. It has an active display area of 3.2 inches (vertical screen) with a resolution of 240×320 pixels (240 horizontal × 320 vertical).

The GC9306 driver IC is installed on the glass through signal input and drives the display module through interconnection with components including FPC. It supports both RGB and MCU interfaces. The FPC can be customized according to requirements, including backlight modifications and interface definition changes.

This product complies with RoHS standards and is halogen-free.

DC Characteristics

Typical Operation Conditions

Backlight Circuit Characteristics

Frequently Asked Questions

How can I find the right product?

Please send us your requirements or datasheet. We will recommend our standard products, and if they don't fit, we will make necessary adjustments and customizations.

Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity orders as pilot production (no less than MOQ).

What are the payment terms?

We usually accept T/T, PayPal, with other terms available for negotiation.

What's the lead time?

Usually 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (based on quantity and specific product requirements).

Packing Method

Put module into tray cavity.
Tray stacking.
Put 1 foam under the tray stack and 1 foam above.
Fix the cardboard to the tray stack with adhesive tape.
Put the tray stack into carton.
Carton sealing with adhesive tape.
