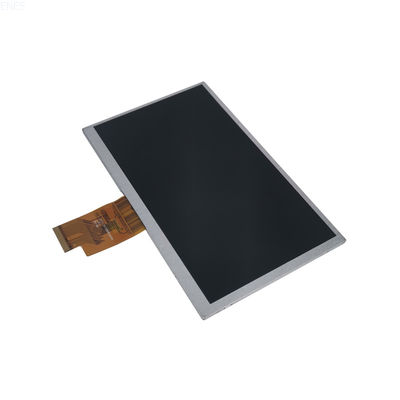

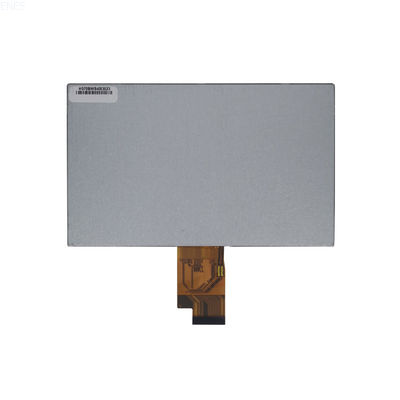

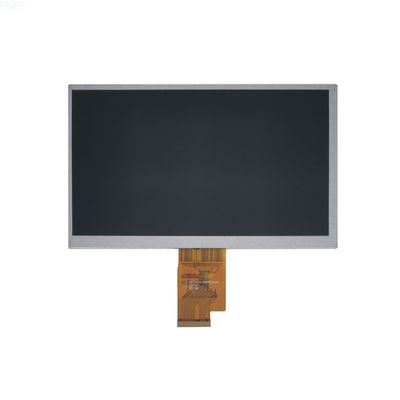

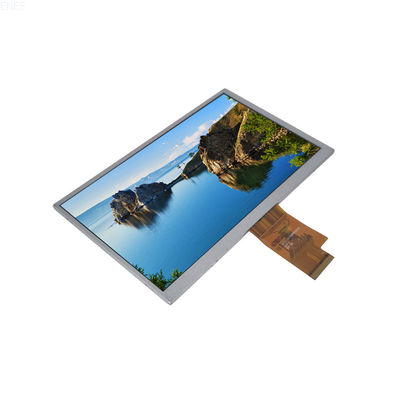

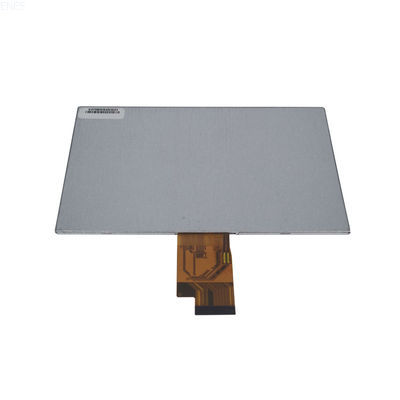

7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch

7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch
7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch
video play

Large Image :  7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T070B W S40I3523
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~15 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Panel Size: 7.0 Inch Number Of Pixels: 1024×RGB (3) ×600
Active Area: 154.21(H)x85.92(V) Mm Pixel Pitch: 0.1506(H)×0.1432(V) Mm
Outline Dimension: 164.9(W)×100(H)×2.8(D) Number Of Colors: 16.7M
Display Mode: Normally Black LCD IC: HX8282-A02+HX8696-A01
Viewing Direction: ALL Display Format: RGB Vertical Stripe
Luminance (cd/m^2): 350(TYP.) Contrast Ratio: 800(TYP.)
Surface Treatment: Anti-Glare Interface: LVDS
Backlight: 27 LEDs Backlight: White LED
Operating Temperature: -20℃~ 70℃ Storage Temperature: -30℃~ 80℃
Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

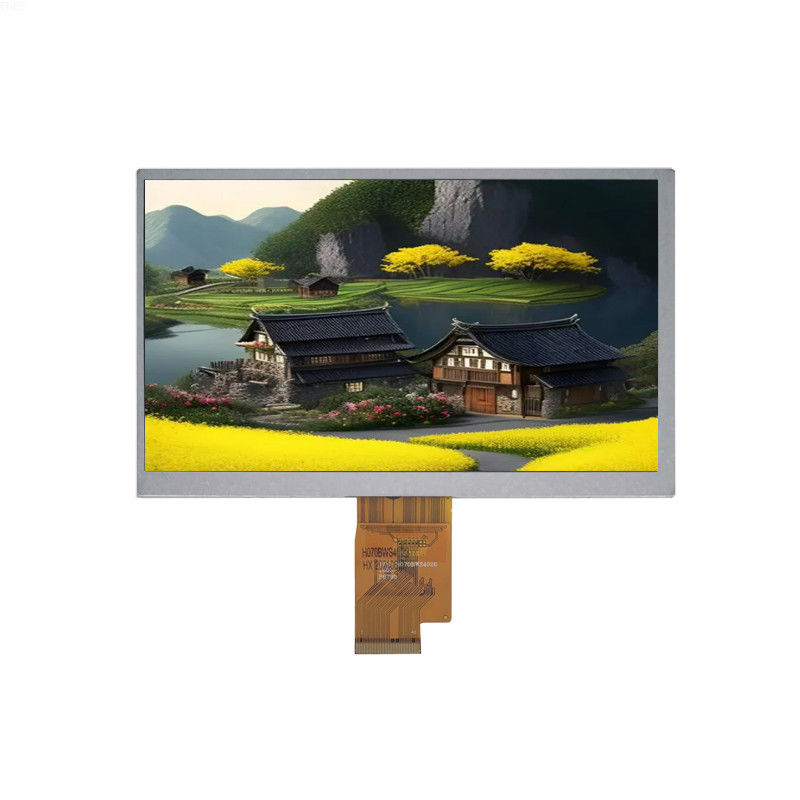

7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch
Product Specifications
Attribute Value
Panel Size 7.0 inch
Number of Pixels 1024×RGB (3) ×600
Active Area 154.21(H)x85.92(V) mm
Pixel Pitch 0.1506(H)×0.1432(V) mm
Outline Dimension 164.9(W)×100(H)×2.8(D)
Number of Colors 16.7M
Display Mode Normally Black
LCD IC HX8282-A02+HX8696-A01
Viewing Direction ALL
Display Format RGB vertical stripe
Luminance (cd/m²) 350(TYP.)
Contrast Ratio 800(TYP.)
Surface Treatment Anti-Glare
Interface LVDS
Backlight 27 LEDs
Backlight White LED
Operating Temperature -20℃~ 70℃
Storage Temperature -30℃~ 80℃
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Product Overview

This 7-inch IPS LCD touchscreen is built for smart home applications. With 1024×600 resolution, it provides a clear smart home control interface at a glance. IPS technology offers a wide viewing angle, allowing you to view the screen from any angle. LVDS interface enables high-speed data transfer, USB provides easy connection with external devices, and I2C interface ensures stable communication. This module delivers a simple and comfortable interactive experience for smart home systems, making it easy to control your home devices.

7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch 0
Electrical Characteristics
7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch 1
Frequently Asked Questions
Q: Can I order a sample to test the quality?
A: Of course, no problem. We suggest checking the sample before placing an order. You can order a sample before placing a bulk order.
Q: Could you provide me with your catalogue and price list based on the minimum order quantity for a trial order?
A: All our products are displayed on the platform. Please take a careful look and select the models or sizes you are interested in on our website. You can also inform us of your preferences, and we will arrange for a professional to serve you.
Q: What price would be suitable if I place a large order?
A: Please send us a detailed inquiry, including the item number, quantity for each item, quality requirements, logo, payment method, shipping method, and destination port. We will provide you with an accurate quotation as soon as possible.
Q: What payment methods do you accept?
A: For samples and small orders, 100% prepayment is required. For bulk production, a 30% advance payment and 70% balance are required. We welcome payment by TT, bank account, and PayPal.
Q: How long will it take for my order to be shipped?
A: As long as there is inventory, we usually ship samples within 1-3 working days after receiving the order confirmation, and custom orders within 7-15 working days. The order will not be confirmed until the payment reaches our bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated delivery time.
