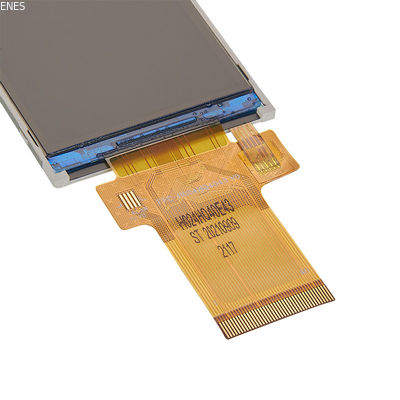

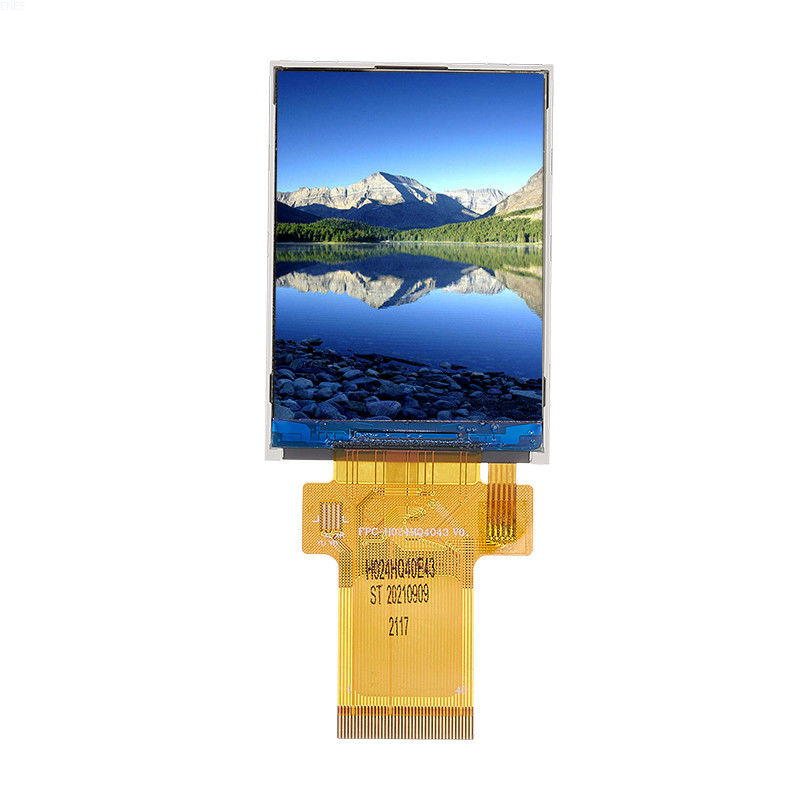

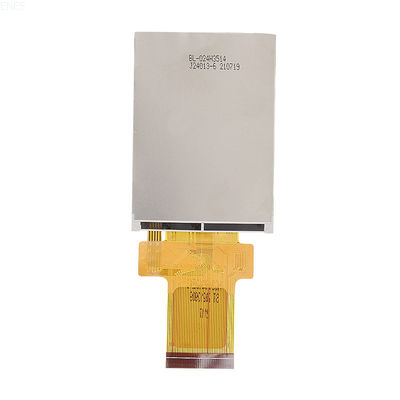

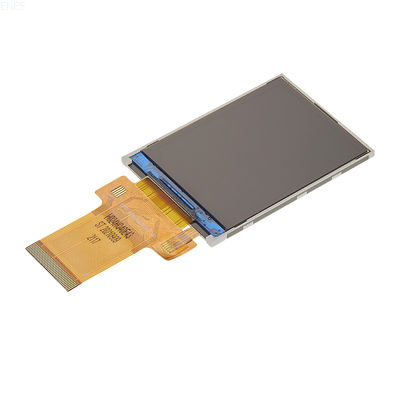

ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320

ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320
ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320
video play

Large Image :  ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T024HQ40E2543
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: Meet product specifications
Delivery Time: 3-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Drive: ST7789V Dimensional Outline: 42.72(W)*60.26(H)*2.20+/-0.1 (T) (FPC Not Include)
Resolution: 240RGB*320mm LCD Active Area: 36.72(W)*48.96(H) Mm
Pixel Size: 0.180(W)*0.180(H) Display Mode: Transmissive 、a-TFT
Display Format: Graphic 240RGB*320 Dot-matrix Input Data: 3-wire Serial Port / 4-wire Serial Port/8bits /16bits Parallel Interface
Viewing Direction: 12 O’clock Backlight: 4 Chip White Led,in Parallel
Interface: MCU Interface，FPC Welding Operatingtemp: -20°C~+70°C
Storagetemp: -30°c~+80°c
Highlight:

ST7789V 2.4 inch tft lcd display

,

240RGB X 320 2.4 inch tft lcd display

,

ST7789V 2.4 inch tft lcd

ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320
Product Specifications
Attribute Value
Drive ST7789V
Dimensional outline 42.72(W)*60.26(H)*2.20+/-0.1 (FPC not included)
Resolution 240RGB*320mm
LCD Active area 36.72(W)*48.96(H) mm
Pixel size 0.180(W)*0.180(H)
Display Mode Transmissive, a-TFT
Display Format Graphic 240RGB*320 Dot-matrix
Input Data 3-wire/4-wire serial port or 8bits/16bits parallel interface
Viewing Direction 12 o'clock
Backlight 4 Chip White LED, in Parallel
Interface MCU Interface, FPC welding
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Product Overview

ESEN's 2.4-inch IPS TFT LCD module features a resolution of 240x320, delivering clear images and excellent color performance. With its compact size and stable performance, this module is ideal for small-sized intelligent devices and portable instruments, providing accurate and intuitive display information.

T024HQ40E2543 Technical Details: This 240RGB*320 dot matrix TFT LCD module contains a panel composed of 240 sources and 320 gates, designed for easy integration with micro-controllers.
Power Supply Configuration

IOVCC and VCC are connected together, requiring 2.8V-3.3V power supply. The backlit LED can be powered separately (3.0-3.4V) or share voltage with VCC (positive connected to VCC, negative connected to ground).

Mechanical Dimensions
ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320 0
Safety & Handling Guidelines
Safety Precautions:
  • Avoid swallowing liquid crystal material
  • If panel breaks, prevent skin contact with liquid crystal
  • If exposed, wash thoroughly with alcohol or soap
Storage Conditions:
  • Store in dark environment at 23±5℃ with humidity below 45±20%RH
  • Use anti-static containers
  • Keep in clean environment free from dust and corrosive gases
  • Avoid organic solvents and crushing/shaking the module
Handling Instructions:
  • Protect against static electricity
  • Handle polarizing plate carefully (fragile)
  • Avoid external shocks and excessive force
  • Clean only with soft cloth and naphtha solvent
  • Never operate beyond maximum ratings
  • Do not disassemble module components
Warranty: 12 months from shipping date under normal use and storage conditions.
