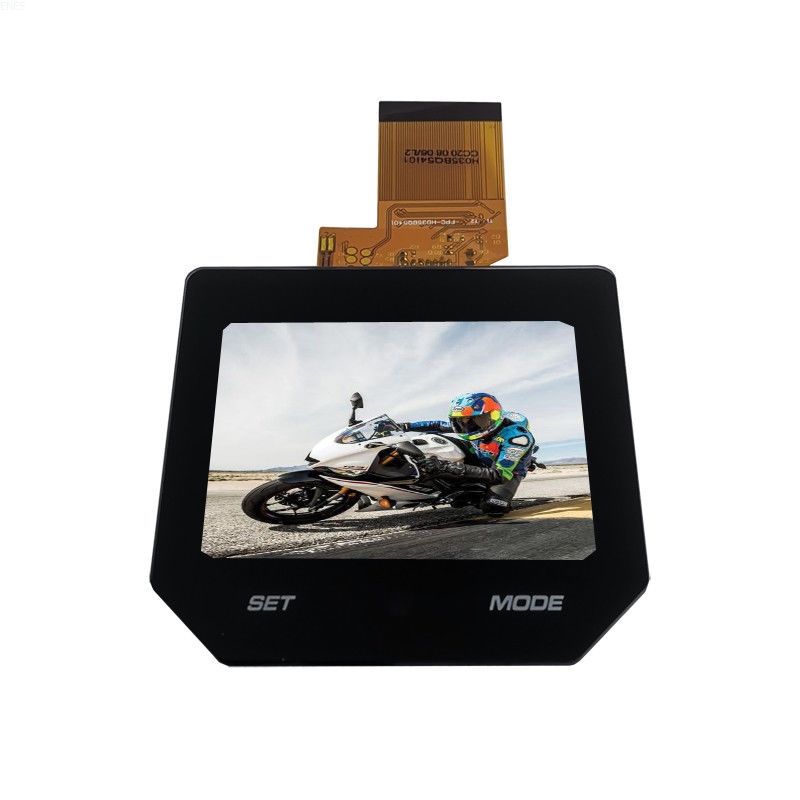

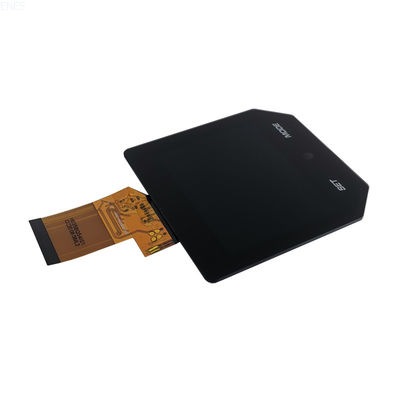

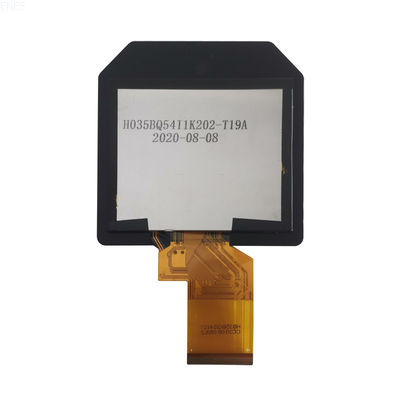

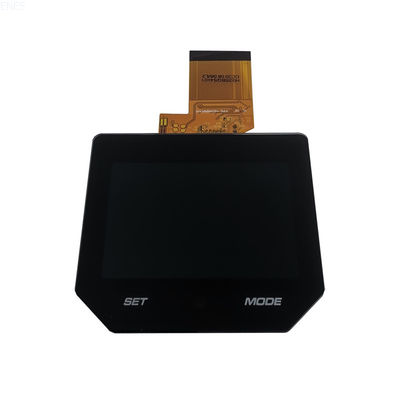

3.5 Inch TFT Transmissive 320×240 All TP Customized LCD Panel

Large Image : 3.5 Inch TFT Transmissive 320×240 All TP Customized LCD Panel

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T035BQ54I1K202

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Price:	Discussible
Packaging Details:	Cartons, Capboard, EPE, Blister Tray
Delivery Time:	7~10 working days
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	3.5inch	Display Format:	320 (RGB) × 240
Interface:	24-bit RGB+SPI	Color Depth:	16.7M
Technology Type:	A-Si	Display Spec:	0.073 X 0.219
Display Mode:	Normally BLACK	Luminance:	1000cd/m2
Surface Treatment:	Haze 20%	Viewing Direction:	ALL
LCM (W X H X D) (mm):	86.86.85.27	Active Area(mm):	70.08 X 52.56
With /Without TSP:	TSP	LED Numbers:	6 LEDs
BACKLIGHT:	6 CHIP WHITE LED, IN PARALLEL	Touch Structure:	G+G, G+F, P+G, G+F+F
Surface Hardness:	≥6H	Bonding Methord:	Air Bonding (tape Bonding), Optical Bonding (OCA Bonding, OCR Bonding).
Special Surface Treatment:	AR, AG, AF	Operating Temperature:	-20--+70/-30--+85(℃)
Storage Temperature:	-30--+80/-40--+90(℃)	Custom Service:	Different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.
Highlight:	3.5 Inch tft transmissive , 320×240 tft transmissive , 16.7M touch screen pcap

3.5 Inch TFT Transmissive 320×240 All TP Customized LCD Panel

Product Specifications

Attribute	Value
LCD Size	3.5inch
Display Format	320 (RGB) × 240
Interface	24-bit RGB+SPI
Color Depth	16.7M
Technology type	a-Si
Display Spec	0.073 x 0.219
Display Mode	Normally BLACK
Luminance	1000cd/m2
Surface Treatment	Haze 20%
Viewing Direction	ALL
LCM (W x H x D) (mm)	86.86.85.27
Active Area(mm)	70.08 x 52.56
With /Without TSP	TSP
LED Numbers	6 LEDs
BACKLIGHT	6 CHIP WHITE LED, IN PARALLEL
Touch Structure	G+G, G+F, P+G, G+F+F
Surface Hardness	≥6H
Bonding Method	air bonding (tape bonding), optical bonding (OCA bonding, OCR bonding)
Special Surface Treatment	AR, AG, AF
Operating Temperature	-20--+70/-30--+85(℃)
Storage Temperature	-30--+80/-40--+90(℃)
Custom Service	different colors, different shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, etc.

Product Description

The 3.5 Inch TFT Transmissive LCD Panel features a 320×240 resolution with full customization capabilities. ESEN offers comprehensive customization services including size, resolution, color, and shape modifications to meet specific application requirements.

Key Features:

Support for logo printing, through holes, transparent windows, and silk printing
Multiple bonding options: air bonding (tape bonding) and optical bonding (OCA bonding, OCR bonding)
Surface treatments including AG, AF, AR coating and anti-UV designs
Customizable touch panel structures: G+G, G+F, P+G, G+F+F

Optical Characteristics

Test Conditions:

IF= 20mA(one channel), the ambient temperature is 25°C
The test systems refer to Note 1 and Note 2

Note 1: Definition of optical measurement system. The optical characteristics should be measured in dark room. After 5 minutes operation, the optical Properties are measured at the center point of the LCD screen. All input terminals LCD panel must be ground when measuring the center area of the panel.

Frequently Asked Questions

Q: Are you manufactory or trade company?

A: We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 6 years in Dongguan! Our advanced full set equipments make sure good quality and competitive price!

Q: How can I get the samples?

A: Send inquiry -> Offer quotation ->Confirm quotation & pay tooling charge -> Provide drawing -> confirm drawing -> make tooling & samples -> Samples finished -> Delivery via freight or sea collect

Q: How long can I expect to get the sample?

A: Contour drawing: 2-3 days Sample time: 10-15 business days

Q: Will you offer free sample?

A: Yes, we usually provide 5-8pcs free samples, you just need to pay the tooling charge.

Q: Can you design the lcd in acccordance with our demand?

A: Sure.We will give you the best tooling charge.

Q: How to place orders?

A: If you confirm samples ok, Please send us your purchase order by Email or Fax, Then we will send you an Invoice for deposit payment. We need to know the following information of your order.

Product information-Quantity, part number
Delivery time required
Shipping information-Company name, Street address, Phone&Fax number, Destination sea port
Forwarder's contact details if you have any in China

Q: How long of mass production?

A: 25-30 business days. It depends on different order quantities and part number.
