TFT 2.2 Inch LCD Display Module 240 X 320 MCU Standard ST7789V2-G4

Large Image : TFT 2.2 Inch LCD Display Module 240 X 320 MCU Standard ST7789V2-G4

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-220BI4501

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	5~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	2.2-Inch	Dimension:	38.68（W）* 55.14（H） * 2.35(T)
Active Area:	33.84* 45.12 Mm	Number OfDots:	240 * RGB * 320
LCD Type:	A-Si TFT	Viewing Direction:	12 O'clock
Driver IC:	ST7789V2-G4	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	Customizable
POL:	UP 0.22/below 0.22	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	TFT 2.2 inch lcd display , 240 X 320 2.2 inch lcd display , ST7789V2-G4 2.2 tft display

TFT 2.2 Inch LCD Display Module 240 X 320 MCU Standard ST7789V2-G4

Product Specifications

Attribute	Value
Size	2.2-Inch
Dimension	38.68（W）* 55.14（H） * 2.35(T)
Active Area	33.84* 45.12 mm
Number Of Dots	240 * RGB * 320
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ST7789V2-G4
Interface Type	MCU
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	4 LEDs
Luminance	Customizable
POL	UP 0.22/below 0.22
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

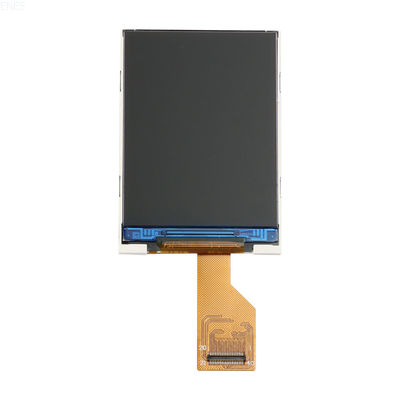

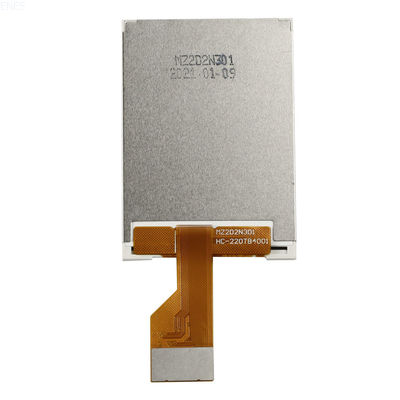

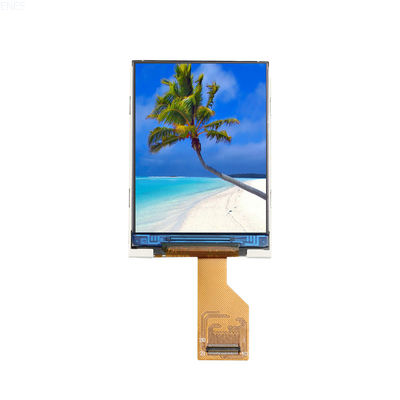

2.2 Inch TFT LCD Module 240*320 MCU Standard TFT LCD Display

Mechanical Drawing

Pin Assignments

NO	Symbol	Description
1	GND	Ground
2-5	NC	NC
6	IMO	I/O choose
7-9	NC	NC
10	RESET	Reset pin
11-14	NC	NC
15-22	DB17-DB10	Data Bus
23	NC	NC
24-31	DB8-DB1	Data Bus
32-34	NC	NC
35	RD	Read signal, rising-edge-active
36	WR	Write signal, rising-edge-trigger
37	RS	Data/Command register address
38	CS	Chip enable, Low-active
39	VCC	POWER SUPPLY
40	VCC	POWER SUPPLY
41	LEDK	BACKLIGHT CATHODE
42-44	LEDA	BACKLIGHT ANODE
45	GND	Ground

Storage Method

Store in an ambient temperature of 23°C±5°C, and in a relative humidity of 55%±15%. Don't exceed 12 months and expose to sunlight or fluorescent light.
Store in a clean environment, free from dust, active gas, and solvent.
LCM module is stored in warehouse, Store in antistatic container. There may be air bubbles between the protective film on the surface of polarizer and polarizer. It can only be found under LED light. Before production, IQC should be inspected directly by LED light. If residual traces are found, alcohol should be used to wipe them.
