White Standard TFT LCD Display LCD 2.2 Inch TFT Display 176xRGBx220

Large Image : White Standard TFT LCD Display LCD 2.2 Inch TFT Display 176xRGBx220

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-220A24101

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	5~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	2.2-Inch	Dimension:	40.20（W）* 55.60（H） * 2.35(T)
Active Area:	34.85* 43.56 Mm	Number OfDots:	176 * RGB * 220
LCD Type:	A-Si TFT	Viewing Direction:	12 O'clock
Driver IC:	ILI9225G	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	230cd~250cd
POL:	UP 0.22/below 0.22	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	Standard TFT LCD Display , White TFT LCD Display , 176xRGBx220 tft lcd display

White Standard TFT LCD Display LCD 2.2 Inch TFT Display 176xRGBx220

Product Specifications

Attribute	Value
Size	2.2-Inch
Dimension	40.20（W）* 55.60（H） * 2.35(T)
Active Area	34.85* 43.56 mm
Number Of Dots	176 * RGB * 220
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ILI9225G
Interface Type	MCU
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	4 LEDs
Luminance	230cd~250cd
POL	UP 0.22/below 0.22
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

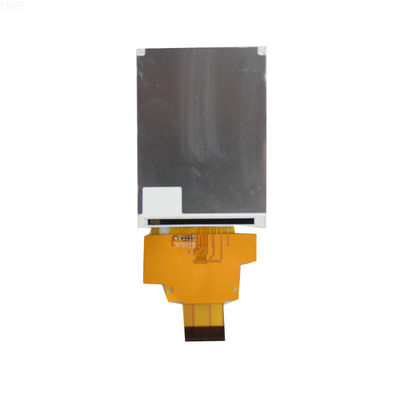

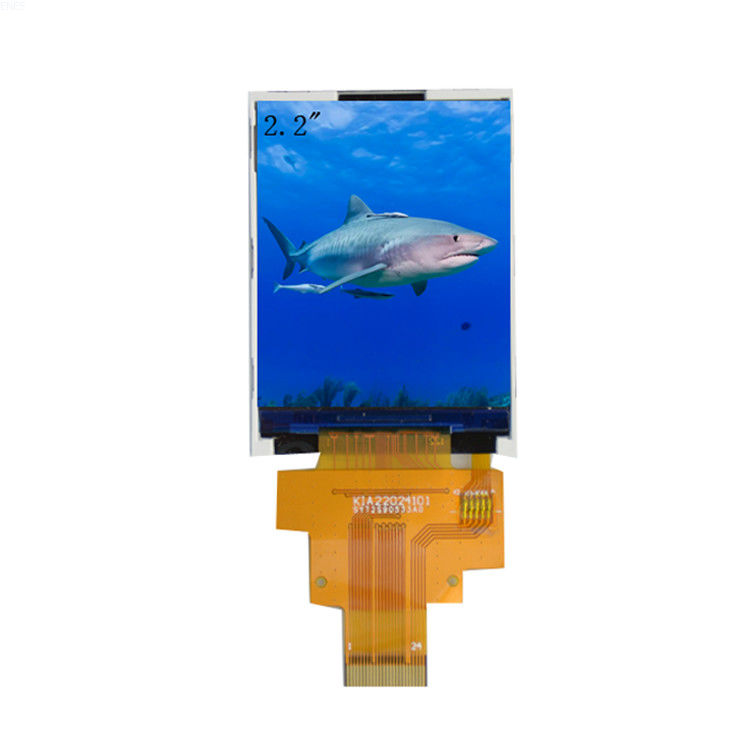

2.2 Inch TFT LCD Module 176 XRGB X 220 White Standard TFT LCD Display

2.2-inch circular LCD module with IPS wide viewing angle and supporting MCU interface. The current 2.2-inch LCD screen has a brightness of 250nits, but we can customize a high-brightness screen for you. We can use higher-brightness backlight lamps or make other adjustments to the current backlight.

In addition, we can also produce 2.2-inch touch screens. They support capacitive touch panels and resistive touch panels, and can be made into 2.2-inch touch panels of different colors, sizes, and shapes.

Mechanical Drawing

Pin Assignments

NO	Symbol	Description
1	GND	Ground
2	VDD	Power Supply
3	RESET	Reset pin
4	CS	Chip enable, Low-active
5	RS	Data/Command register address
6	WR	Write signal, rising-edge-trigger
7	RD	Read signal, rising-edge-active
8	IM0	I/O choose
9	GND	Ground
10	VDD	Power Supply
11	DB8	Data Bus
12	DB9	Data Bus
13	DB10	Data Bus
14	DB11	Data Bus
15	DB12	Data Bus
16	DB13	Data Bus
17	DB14	Data Bus
18	DB15	Data Bus
19	GND	Ground
20	GND	Ground
21	LEDK3	Backlight Cathode
22	LEDK2	Backlight Cathode
23	LEDK1	Backlight Cathode
24	LEDA	Backlight Anode
