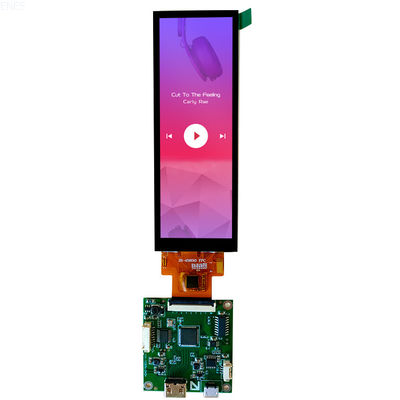

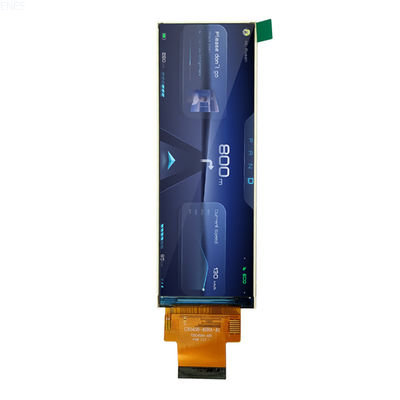

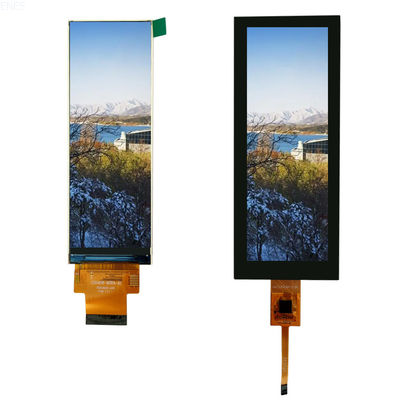

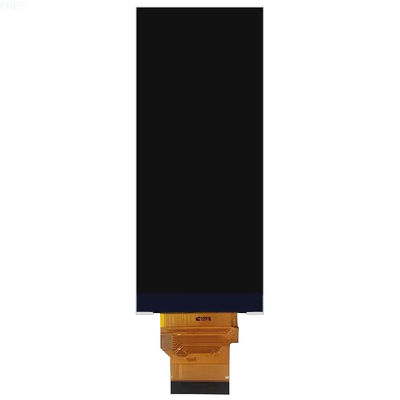

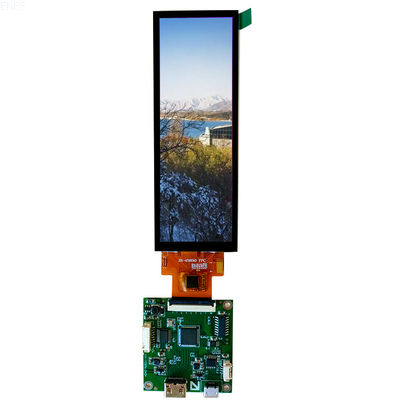

4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB

Name: 4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB
Brand: ESEN HK LIMITED
SKU: TX046-40RA-A1
Availability: InStock

Large Image : 4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module 4.58'' 40Pin ST7701S PCAP SPI 18RGB

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX046-40RA-A1

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Panel Size:	4.58 Inch	Resolution:	320(RGB)x960
Display Mode:	Normally Black	Pixel Pitch:	0.09525(H) × 0.09525(V)
Pixel Arrangement:	RGB Vertical Stripe	Viewing Direction:	Free
Module Outline Dimension:	41.57 (H)118.8 (V)2.5(D)	LCD AA:	36.77 (H)* 110.30 (V)
TP VA:	--	Luminance:	300cd/㎡(TYP)
Colors:	16.7M	Driver IC:	ST7701S
Interface:	RGB /MIPI/SPI	Operating Temperature:	-20℃~ +70℃
Storage Temperature:	-30℃~ +80℃	FPC Connecting Method:	40 Pin Plug In FPC
Customization:	FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points)
Highlight:	320x960 HDMI TFT LCD Display , 4.6in HDMI TFT LCD Display , 18RGB ips lcd display

4.6 Inch 320x960 RGB Bar Stripe TFT LCD Module

High-performance 4.58'' 40Pin ST7701S display module with PCAP SPI 18RGB interface and customizable capacitive touch panel options.

Product Specifications

Attribute	Value
Panel Size	4.58 inch
Resolution	320(RGB)x960
Display Mode	Normally Black
Pixel Pitch	0.09525(H) × 0.09525(V)
Pixel Arrangement	RGB Vertical Stripe
Viewing Direction	Free
Module Outline Dimension	41.57 (H)118.8 (V)2.5(D)
LCD AA	36.77 (H)* 110.30 (V)
Luminance	300cd/㎡(TYP)
Colors	16.7M
Driver IC	ST7701S
Interface	RGB /MIPI/SPI
Operating Temperature	-20℃~ +70℃
Storage Temperature	-30℃~ +80℃
FPC Connecting Method	40 Pin Plug in FPC

Customization Options

FPC (Shape, Pin Definition, Connector, EMI Film)
Backlight (Dimension, Using Life, LED Color, Luminance)

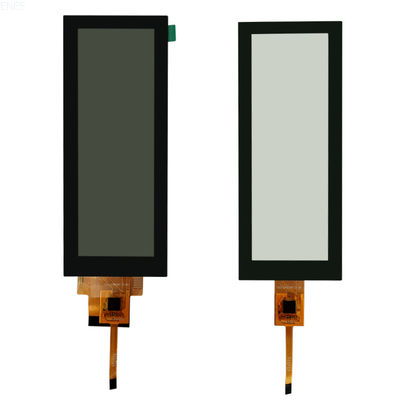

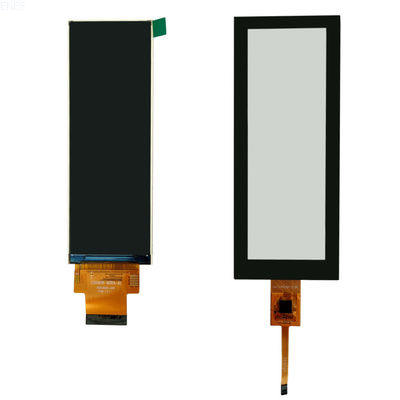

Touch Panel (Shape, Dimension, FPC, Touch Points)

Mechanical Drawing

Interface Signal

Electro-Optical Characteristics

Absolute Maximum Ratings

The absolute maximum rating values of this product are not allowed to be exceeded at any times. Should a module be used with any of the absolute maximum ratings exceeded, the characteristics of the module may not be recovered, or in an extreme case, the module may be permanently destroyed.

Frequently Asked Questions

Q: What is your company's experience and reputation in the industry?

A: Our company has been in business for 15 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

Q: Are there any certifications or standards that the product meets?

A: Yes, our product meets several industry certifications and standards, including ISO9001 Certificate and RoHS Environmental Certification.

We believe that the TX046-40RA-A1 offers an unbeatable combination of quality, performance, and value. Contact us for more information about how this display module can benefit your application.
