0.49 Inch 64x32 Monochrome Micro OLED Display White Mono SSD1315 I2C 14Pin FPC

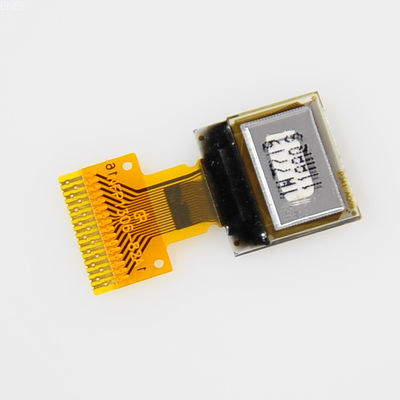

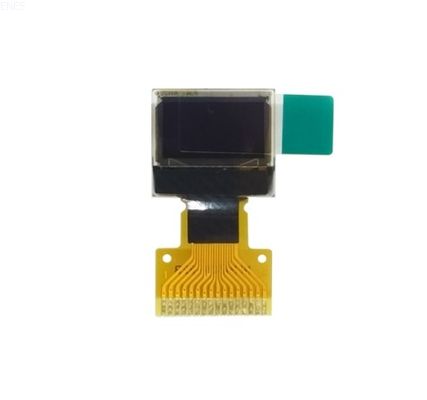

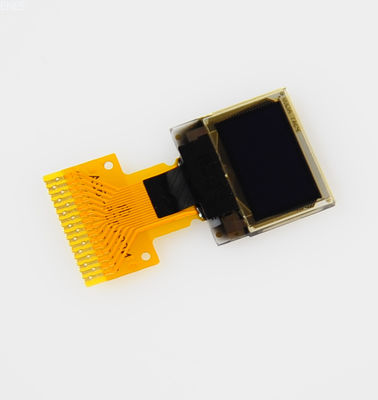

Large Image : 0.49 Inch 64x32 Monochrome Micro OLED Display White Mono SSD1315 I2C 14Pin FPC

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	COGX049-6432TSWPG02

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Display Mode:	Passive Matrix	Display Color:	Monochrome (White)
Drive Duty:	1/32 Duty	Outline Drawing:	According To The Annexed Outline Drawing
Number Of Pixels:	64 X 32	Panel Size:	14.5 X 11.6 X 1.21 (mm)
Active Area:	11.18 X 5.58 (mm)	Pixel Pitch:	0.175 X 0.175 (mm)
Pixel Size:	0.155 X 0.155 (mm)	Driver IC:	S S D1315
FP C Numbe:	NFP1315-99	Interface:	12C
Luminance:	180cd/m2	FPC Connecting Mode:	14 Pin Soldering FPC
Highlight:	64x32 OLED LCD Display , 0.49 Inch OLED LCD Display , 14Pin micro oled display

0.49 Inch 64×32 Monochrome Micro OLED Display

Product Specifications

Attribute	Value
Display Mode	Passive Matrix
Display Color	Monochrome (White)
Drive Duty	1/32 Duty
Number of Pixels	64 × 32
Panel Size	14.5 × 11.6 × 1.21 (mm)
Active Area	11.18 × 5.58 (mm)
Pixel Pitch	0.175 × 0.175 (mm)
Pixel Size	0.155 × 0.155 (mm)
Driver IC	SSD1315
FPC Number	NFP1315-99
Interface	I2C
Luminance	180cd/m²
FPC Connecting Mode	14 Pin Soldering FPC

Key Features

Compact 0.49 inch monochrome OLED display with white color output
High-resolution 64×32 pixel matrix for clear display
SSD1315 driver IC with I2C interface for easy integration
14-pin FPC connection for reliable electrical contact
Compact panel size of 14.5 × 11.6 × 1.21 mm

Technical Documentation

Active Area and Memory Mapping diagram for 64×32 OLED display

Design Note: When designing the main board, please add an electronic switch circuit to prevent leakage current.

Operation Precautions

Extended operation with fixed patterns may cause temporary afterimages or contrast deviation
Avoid touching pins, electrodes, and FPC patterns to prevent static damage
Shield the OEL driver from light exposure to prevent malfunction
Follow proper handling, storage, and disposal procedures

Warranty Information

Twelve (12) months from date of delivery. Buyer must complete all assembly processes within warranty period. ESEN will replace products with defective materials or processes that don't conform to specifications. Proper storage, handling, and maintenance are required for warranty coverage.
