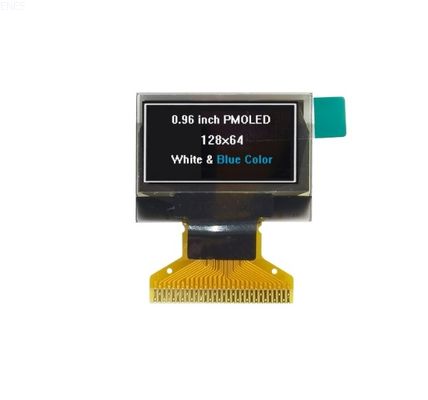

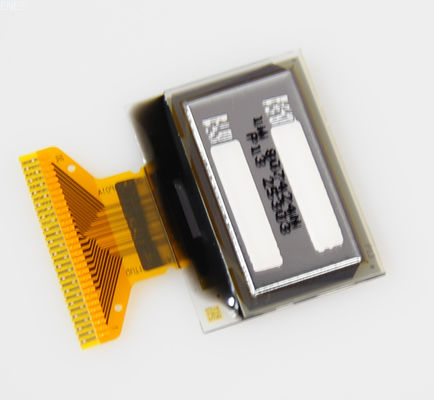

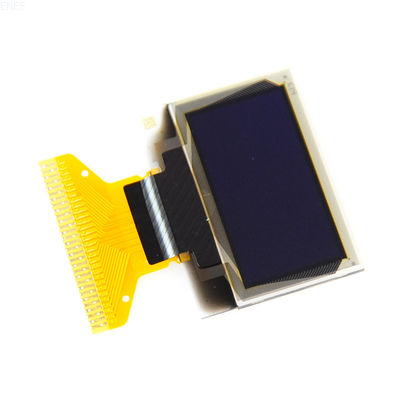

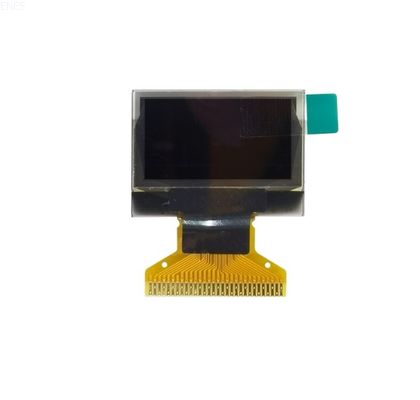

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

Large Image :  White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX096PM2864-1
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 2-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Detailed Product Description
Display Mode: Passive Matrix Display Color: Monochrome (Yellow&Blue)
Drive Duty: 1/64 Duty Outline Drawing: According To The Annexed Outline Drawing
Number Of Pixels: 128 X 64 Panel Size: 26.70 X 19.26 X 1.25 (mm)
Active Area: 21.74 X 11.2(mm) Pixel Pitch: 0.17 X 0.17(mm)
Pixel Size: 0.15 X 0.15 (mm) Driver IC: SSD1306
FP C Numbe: NFP1306-133 Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Luminance: 100cd/m2 FPC Connecting Mode: 30 Pin Soldering FPC
Weight: 1.54 (g) Datasheet: Please Contact Service
Highlight:

Mono 0.96 lcd

,

Blue 0.96 lcd

,

30Pin tft oled display

0.96 Inch 128x64 White Blue Color Mono OLED Display 30Pin Monochrome PMOLED Screen Panel SSD1306 SPI I2C Interface

X096-2864TMBEG03AT-H30 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package

Active Area / Memory Mapping & Pixel Construction

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 0

Mechanical Drawing

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 1



White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 2

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 3

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 4

VCC Supplied Externally                                      Absolute Maximum Ratings

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 5White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface 6

Q&A



Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
