0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Excellent service gives us confidence in your products.

—— Henry

In the process of cooperation, the technical team responded quickly and solved the various problems we encountered in a timely manner, so that our production process can be carried out smoothly, and we look forward to more cooperation in the future.

—— Ford

After-sales service team is very professional, regular visits and technical support, so that we have no worries.

—— Marco

A reliable partner for our company.

—— Mia

I'm Online Chat Now

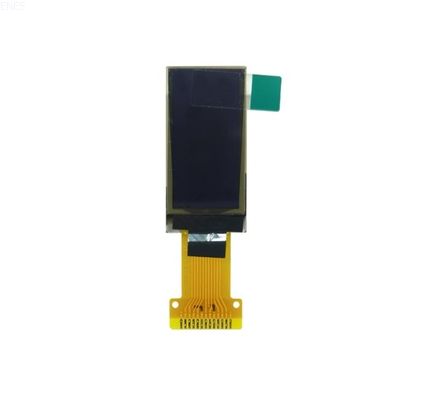

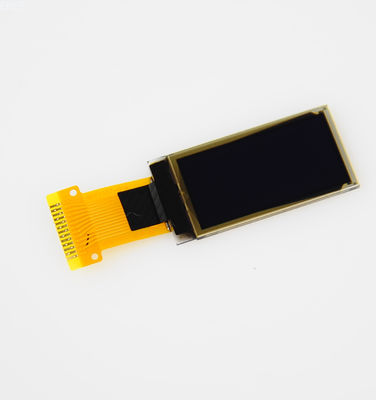

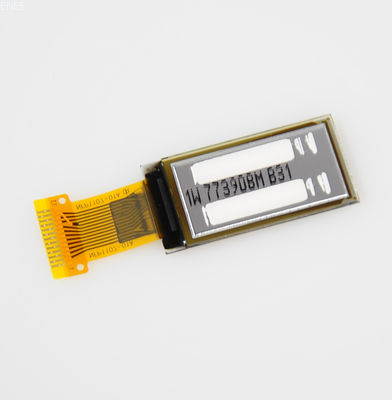

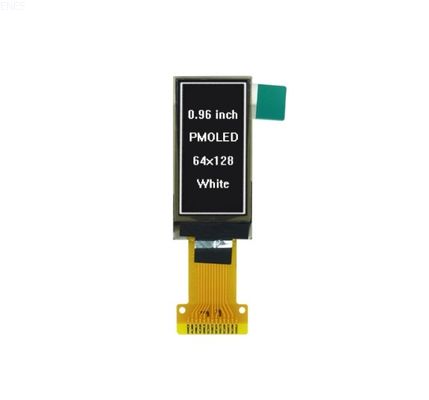

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C
0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Large Image :  0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX096PM6428
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 2-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Detailed Product Description
Display Mode: Passive Matrix Display Color: Monochrome (White)
Drive Duty: 1/128 Duty Outline Drawing: According To The Annexed Outline Drawing
Number Of Pixels: 64 X128 Panel Size: 14 X 28 X 1.22 (mm)
Active Area: 10.86 X 21.74 (mm) Pixel Pitch: 0.17 X 0.17(mm)
Pixel Size: 0.15 X 0.15 (mm) Driver IC: SSD1312
FP C Numbe: NFP1312-24 Interface: 4-wire SPI, I2C
Luminance: 120cd/m2 FPC Connecting Mode: 13 Pin Soldering FPC
Datasheet: Please Contact Service
Highlight:

64 X 128 OLED LCD Display

,

0.96'' OLED LCD Display

,

13Pin lcd oled display

0.96 inch 64 x 128 Yellow Blue Color Mono OLED Screen 13Pin SSD1312 3/4 Wire SPI I2C Parallel Monochrome PMOLED Display LCD Panel

Serial Interface Timing Characteristics: (4-wire SPI) (VDD - VSS = 1.65V to 2.4V, Ta = 25°C)

Special Tips:When design main board, Please add Electronic Switch circuit, otherwise, will be caused leak current

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 0

Active Area / Memory Mapping & Pixel Construction

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 1

Drawing

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 2

Pin Definition

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 3

Contents of Reliability Tests

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C 4

After the completion of the described reliability test, the samples were left at room temperature for 2 hrs prior to conducting the failure test at 23+-5°C; 55+-15% RH.

Package Specifications

Item Quantity
Module 810 per Primary Box
Holding Trays (A) 15 per Primary Box
Total Trays (B) 16 per Primary Box (Including 1 Empty Tray)
Primary Box (C) 1~4 per Carton (4 as Major / Maximum)

Q&A



Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
