Product Information

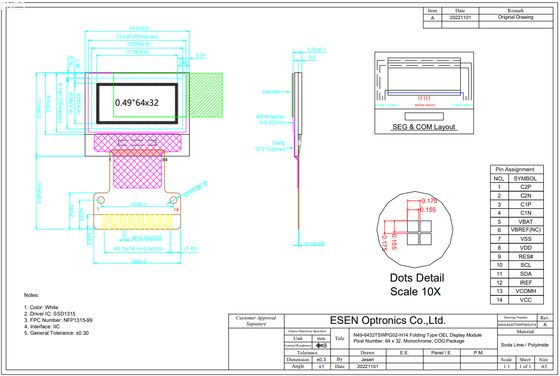

N049-6432TSWPG02-H14 a 0.49-inch passive matrix OLED display module which is made of 64x32 dots. The X049-6432TSWPG02-H14 has the module outline of 14.5x 11.6 x 1.21 mm and Active Area size 11.18 × 5.58 mm.
The OLED micro display is built in with SSD1315 IC, it supports 4-wire SPI/I²C interface, 3V power supply. X049-6432TSWPG02-H14 is a COG structure OLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption. the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 7.25V(VCC).
The current with 50% checkerboard display is 7.25V (for white color), 1/32 driving duty. he module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
All in all, the X049-6432TSWPG02-H14 OLED display is a powerful and advanced product that combines cutting-edge technology with a stylish and compact design. This 0.49-inch small sized OLED module is suitable for wearable device, E-Cigarette, portable device, personal care appliance, voice recorder pen, health device, etc.
Below are the advantages of this low-power OLED display:
- Thin–No need of backlight, self-emissive;
- Wide viewing angle :Free degree;
- High Brightness: 180 cd/m²;
- High contrast ratio(Dark Room): 2000:1;
- High response speed(＜2μS);
- Wide Operation Temperature;
- Lower power consumption.
Choosing us as your core OLED display supplier means partnering with a technology-driven company with years of expertise in the micro-display field. We specialize in small to medium-sized OLED display solutions, and our core advantages lie in:
In summary, choosing us means you gain not just a high-performance OLED display, but a strategic partner offering comprehensive support in display technology, production processes, and supply chain management. Whether for smart wearables, industrial handheld devices, consumer electronics, or other fields, we will leverage our exceptional OLED products to help your product stand out in the market.
We look forward to exploring the infinite possibilities of display technology with you.
OLED Display FAQ
Q: What is the operating temperature range for OLED displays?
A: The operating temperature range for our standard products is typically -20°C ~ +70°C.
Q: Can I test samples and purchase OLED displays?
A: Absolutely! Please contact us via the website inquiry form or directly via email to get the latest quotation and lead time.
Product Information

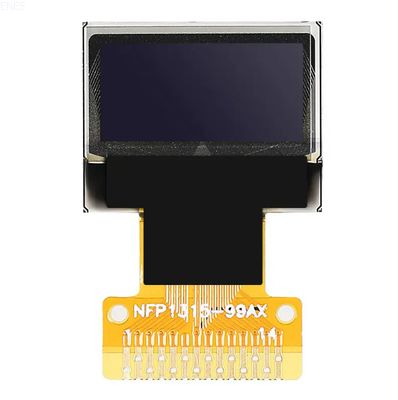

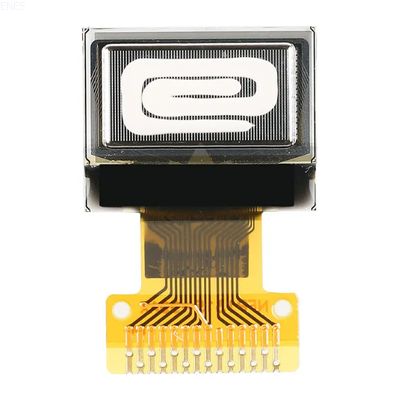

Introducing our latest innovative product 0.49-inch micro 64×32 dot OLED display module screen. This incredible display module truly pushes the boundaries of what is possible with small screens, delivering unparalleled clarity and functionality in a compact size.
The OLED display module has a resolution of 64×32 dots, bringing stunning detail to any application. This module is perfect whether you're developing wearables, small electronics, or any other project that requires a compact and vibrant display.
One of the key features of our 0.49-inch OLED display modules is its organic light-emitting diode technology. This not only enhances the visual experience but also ensures that the display consumes less power compared to traditional LCD screens. This means you can enjoy longer battery life and increase the efficiency of your device.
Despite its small size, this display module boasts impressive brightness and contrast. High brightness ensures readability even in challenging lighting conditions, while excellent contrast delivers clear and vivid images. Whether you use it indoors or outdoors, our OLED display modules guarantee excellent visual performance.
In addition to its excellent visual quality, this display module offers incredible versatility. It has wide viewing angles, which means you can see the screen clearly from different positions and angles. This makes it ideal for mobile applications where multiple users may be viewing the display simultaneously.
Additionally, our 0.49" OLED display module is designed with ease of use in mind. Due to its compact size and lightweight construction, it is easy to integrate into your device. The module also supports a range of interface options, allowing you Connect it seamlessly to your system.
When it comes to high-quality displays in a compact form factor, our 0.49" micro 64×32 dot OLED display module screens lead the way. Experience the future of visual technology with this incredible display module and get your project started A world of infinite possibilities.
