0.49 Inch 64x32 Monochrome Micro OLED Display White Mono SSD1315 I2C 14Pin FPC

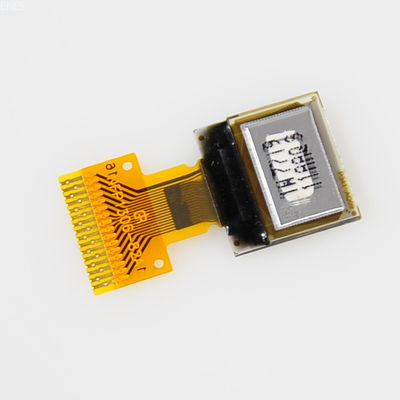

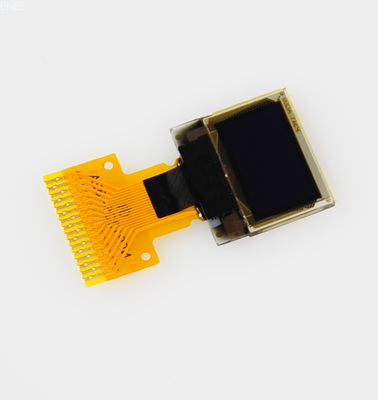

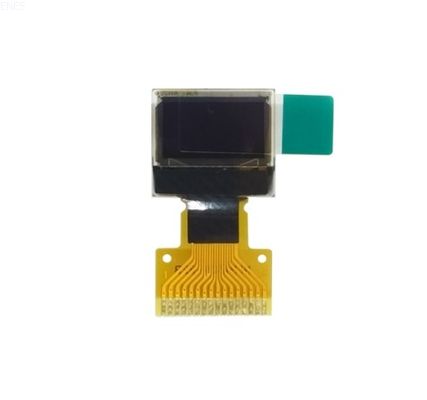

Large Image : 0.49 Inch 64x32 Monochrome Micro OLED Display White Mono SSD1315 I2C 14Pin FPC

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	COGX049-6432TSWPG02

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Display Mode:	Passive Matrix	Display Color:	Monochrome (White)
Drive Duty:	1/32 Duty	Outline Drawing:	According To The Annexed Outline Drawing
Number Of Pixels:	64 X 32	Panel Size:	14.5 X 11.6 X 1.21 (mm)
Active Area:	11.18 X 5.58 (mm)	Pixel Pitch:	0.175 X 0.175 (mm)
Pixel Size:	0.155 X 0.155 (mm)	Driver IC:	S S D1315
FP C Numbe:	NFP1315-99	Interface:	12C
Luminance:	180cd/m2	FPC Connecting Mode:	14 Pin Soldering FPC
Highlight:	64x32 OLED LCD Display , 0.49 Inch OLED LCD Display , 14Pin micro oled display

0.49 Inch 64x32 Monochrome Micro OLED Display White Mono SSD1315 I2C 14Pin FPC

Product Attributes

Attribute	Value
Display Mode	Passive Matrix
Display Color	Monochrome (White)
Drive Duty	1/32 Duty
Outline Drawing	According to the annexed outline drawing
Number of Pixels	64 x 32
Panel Size	14.5 x 11.6 x 1.21 (mm)
Active Area	11.18 x 5.58 (mm)
Pixel Pitch	0.175 x 0.175 (mm)
Pixel Size	0.155 x 0.155 (mm)
Driver IC	S S D1315
FP C Numbe	NFP1315-99
Interface	12C
Luminance	180cd/m2
FPC Connecting Mode	14 Pin Soldering FPC

Product Description

0.49 inch 64x32 Monochrome Micro OLED Display White Color Mono PMOLED LCD Screen Micro Display SSD1315 I2C 14Pin FPC Small Size

Technical Specifications

Basic Specifications: Display Specifications, Mechanical Specifications
Active Area / Memory Mapping & Pixel Construction

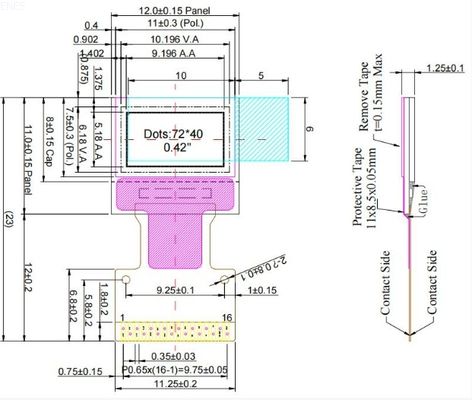

Mechanical Drawing
Pin Definition
Absolute Maximum Ratings
Optics & Electrical Characteristics
Functional Specification
Reliability
Outgoing Quality Control Specifications
Package Specifications
Precautions When Using These OEL Display Modules

Active Area / Memory Mapping & Pixel Construction

Pin Definition

Absolute Maximum Ratings

Special Tip: When designing main board, please add Electronic Switch circuit, otherwise, it may cause leak current.

Other Precautions

When an OEL display module is operated for a long time with fixed pattern, an after image or slight contrast deviation may occur. Normal state can be restored by interrupting operation and leaving unused for a while.
To protect from static electricity damage, avoid touching pins, electrodes, and pattern layouts such as the FPC.
The exposed OEL driver may malfunction if exposed to light. Design product and installation method to shield the driver from light during both usage and inspection processes.
This OEL display module stores operation state data by commands.

Warranty Information

Twelve (12) months from the date of delivery. The buyer shall complete all assembly processes within the valid twelve (12) months.

During the warranty period, if the product contains defective materials or processes that do not conform to product specifications, applicable drawings and norms, ESEN shall be responsible for replacement.
