64 X 128 1.3'' Vertical Mono OLED LCD Display 13 Pin White CH1115 I2C 4 Wire

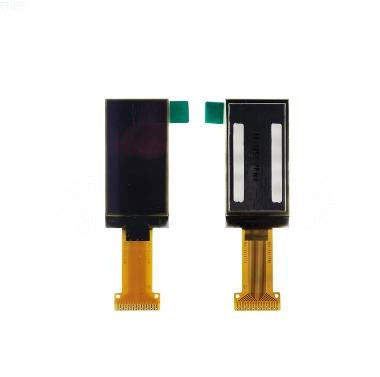

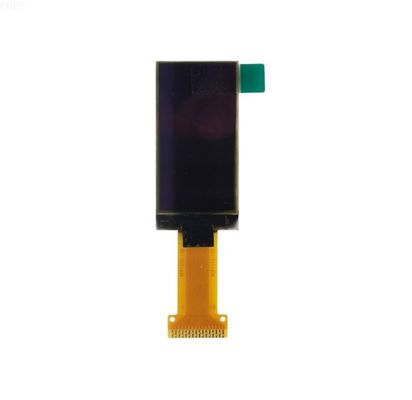

Large Image : 64 X 128 1.3'' Vertical Mono OLED LCD Display 13 Pin White CH1115 I2C 4 Wire

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX130PM-6428G01

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	2-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Display Mode:	Passive Matrix	Display Color:	Monochrome (White)
Drive Duty:	1/128 Duty	Outline Drawing:	According To The Annexed Outline Drawing
Number Of Pixels:	64 X128	Panel Size:	17.1 X 35.8 X 1.43(mm)
Active Area:	14.7 X 29.42 (mm)	Pixel Pitch:	0.23 X0.23(mm)
Pixel Size:	0.21 X 0.21 (mm)	Driver IC:	SSD1312
FP C Numbe:	NFP1312-23	Interface:	4-wire SPI, I2C
Luminance:	120cd/m2	FPC Connecting Mode:	13 Pin Soldering FPC
Datasheet:	Please Contact Service
Highlight:	Vertical OLED LCD Display , 64 X 128 OLED LCD Display , CH1115 pm oled

64 X 128 1.3" Vertical Mono OLED LCD Display

13 Pin White CH1115 I2C 4 Wire Interface

Technical Specifications

Attribute	Value
Display Mode	Passive Matrix
Display Color	Monochrome (White)
Drive Duty	1/128 Duty
Number of Pixels	64 x 128
Panel Size	17.1 x 35.8 x 1.43(mm)
Active Area	14.7 x 29.42 (mm)
Pixel Pitch	0.23 x 0.23(mm)
Pixel Size	0.21 x 0.21 (mm)
Driver IC	SSD1312
Interface	4-wire SPI, I2C
Luminance	120cd/m2
FPC Connecting Mode	13 Pin Soldering FPC

Product Overview

1.3 Inch vertical monochrome PMOLED display with 64 x 128 resolution, featuring a COG package and white monochrome output. The X130-6428TSWWG01-H13 folding type OEL display module offers reliable performance with I2C and 4-wire SPI interface options.

Mechanical Drawing

Pin Definition

Packaging Specifications

Item	Quantity
Module	810 per Primary Box
Holding Trays (A)	15 per Primary Box
Total Trays (B)	16 per Primary Box (Including 1 Empty Tray)
Primary Box (C)	1~4 per Carton (4 as Major / Maximum)

Handling Precautions

Important Safety Information

The glass display panel is fragile - avoid mechanical impacts or drops
If panel breaks, avoid contact with leaked organic substances
Do not apply pressure to display surface or surrounding areas
The polarizer surface scratches easily - handle with care
Clean soiled surfaces with Scotch Mending Tape No. 810 or equivalent only
Avoid solvents, water, or breathing on the polarizer surface
Handle carefully during system housing installation
Do not apply stress to driver IC or molded sections
Never disassemble or modify the display module
Ensure proper grounding when handling to prevent static damage
Remove protective film carefully before assembly
Avoid operation in high humidity or dewed conditions

Technical Documentation

For complete specifications and electrical characteristics, please contact our service department for the datasheet.
