128x64 1.3'' Mono OLED LCD Display 30Pin Monochrome PMOLED Screen SH1106G

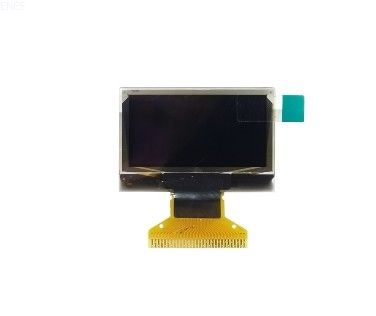

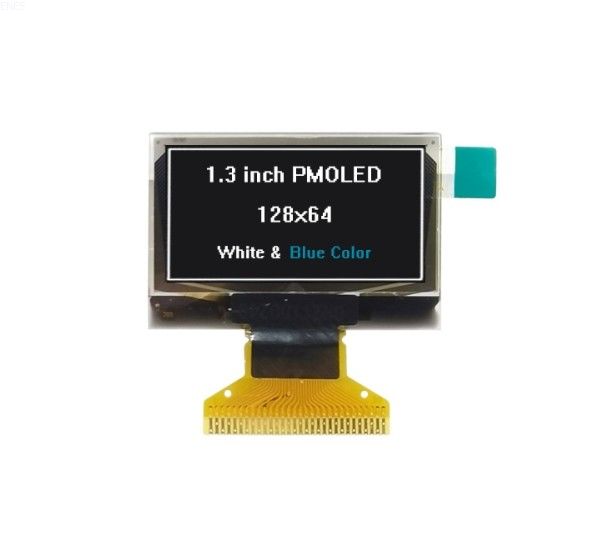

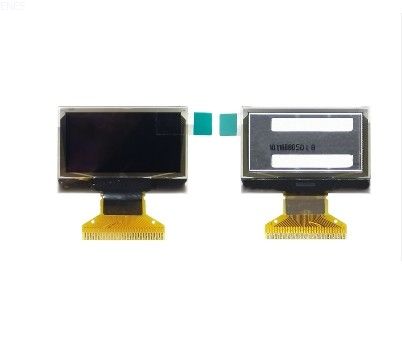

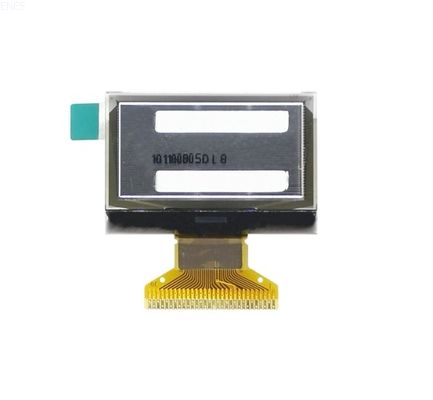

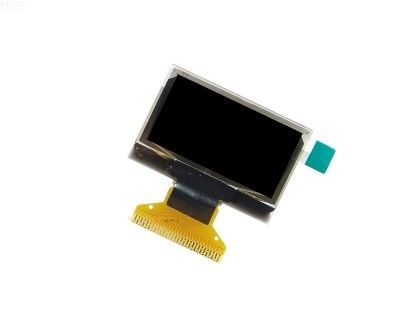

Large Image : 128x64 1.3'' Mono OLED LCD Display 30Pin Monochrome PMOLED Screen SH1106G

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	THP12864-PM110

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	2-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	1.3inch	LCM Dimension:	34.5x23.0x1.4(mm)
FPC Number:	NFP1106-07	Display Mode:	Passive Matrix
Display Color:	Monochrome (Blue)	Drive Duty:	1/64 Duty
Outline Drawing:	According To The Annexed Outline Drawing	Number Of Pixels:	128 X 64
Panel Size:	34.5 X 23.0 X 1.4 (mm)	Active Area:	29.42 X 14.7(mm)
Pixel Pitch:	0.23 X0.23(mm)	Pixel Size:	0.21 X 0.21(mm)
Weight:	2.18(g)
Highlight:	Mono OLED LCD Display , 128x64 OLED LCD Display , 1.3'' oled tft display

128x64 1.3'' Mono OLED LCD Display 30Pin Monochrome PMOLED Screen SH1106G

Product Specifications

Attribute	Value
Size	1.3inch
LCM Dimension	34.5x23.0x1.4(mm)
FPC Number	NFP1106-07
Display Mode	Passive Matrix
Display Color	Monochrome (Blue)
Drive Duty	1/64 Duty
Number of Pixels	128 x 64
Panel Size	34.5 x 23.0 x 1.4 (mm)
Active Area	29.42 x 14.7(mm)
Pixel Pitch	0.23 x 0.23(mm)
Pixel Size	0.21 x 0.21(mm)
Weight	2.18(g)

Product Description

N130-2864KLBLG01-H30 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package

Features

SH1106G controller
Support maximum 128 X 64 dot matrix panel
Embedded 128 X 64 bits SRAM
Operating voltage:
- Logic voltage supply: VDD= 3.3V - 4.2V
- OLED Operating voltage supply: Internal VPP generator = 6.4V - 9.0V
Maximum segment output current: 200mA
Maximum common sink current: 27mA
4-wire serial peripheral interface, 400KHz fast I2C bus interface
Programmable frame frequency and multiplexing ratio
Row re-mapping and column re-mapping (ADC)
Vertical scrolling
On-chip oscillator
Programmable Internal charge pump circuit output
256-step contrast control on monochrome passive OLED panel
Low power consumption (Sleep mode: <5mA)

Active Area / Memory Mapping & Pixel Construction

Pin Connections

Pin No.	Pin Out	I/O	Description
1	VDD	3.3~4.2V	Power Supply for Display Module Circuit.
2	GND	P	Ground.
3	SCK	I	Serial clock input PIN.
4	SDA	I	Serial data input PIN.

Panel Layout Diagram

Block Diagram

Absolute Maximum Rating

ITEM	SYMBOL	MIN	MAX	UNIT
POWER SUPPLY FOR LOGIC	VDD-VSS	-0.3	5.5	V
POWER SUPPLY FOR DRIVE IC	VPP-VSS	-0.3	14.0	V
INPUT VOLTAGE	VDD-VSS	-0.3	6.0	V
SUPPLY CURRENT	Icc	-0.3	200	mA
Operating Temperature	Top	-40	85	℃
Storage Temperature	Tstg	-45	90	℃

Note 1: All the above voltage are on the basis of "GND=0V".
Note 2: When this module is used beyond the above absolute maximum ratings, permanent breakage of the module may occur. Also, for normal operations, it is desirable to use this module under the conditions according to Section 3. "Electrical Characteristics". If this module is used beyond these conditions, malfunctioning of the module can occur and the reliability of the module may deteriorate.
