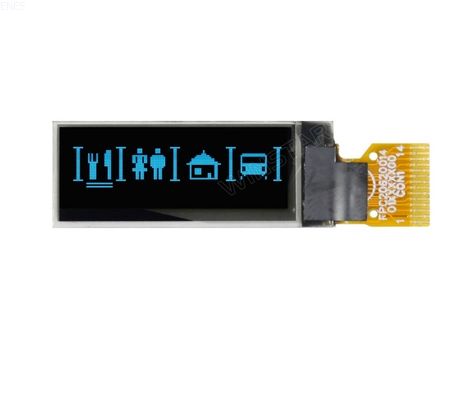

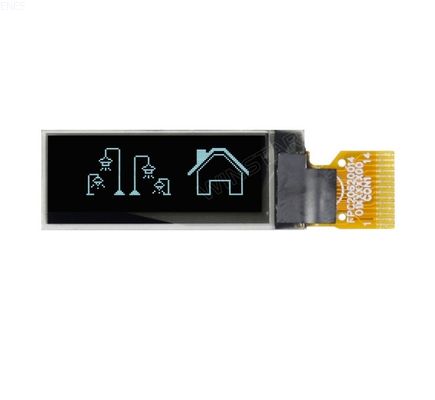

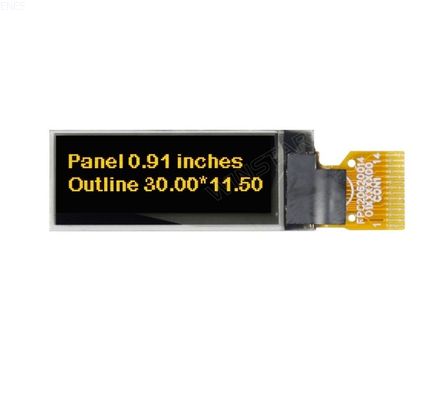

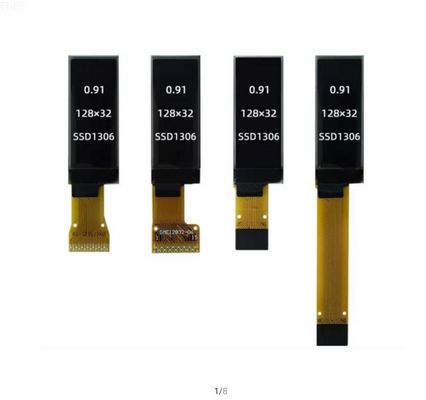

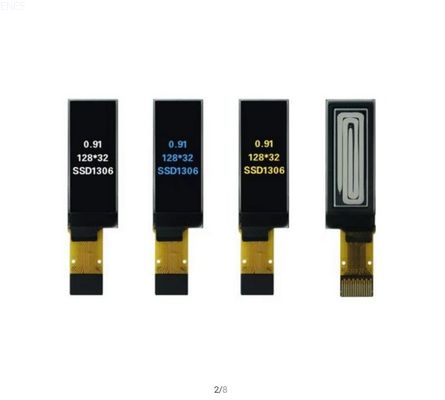

0.91 inch 128x32 Monochrome OLED Display Module Manufacturer Support interface 12C Driver IC SSD1306 with Customized FPC

Large Image : 0.91 inch 128x32 Monochrome OLED Display Module Manufacturer Support interface 12C Driver IC SSD1306 with Customized FPC

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	HP12832-65-TSWG4P091

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	0.91 Inch	Dot Matrix:	128 X 32 Dots
Module Dimension:	30.0 X11.5 X1.26mm	Active Area:	22.384 X5.584 Mm
Pixel Size:	0.152 X 0.152mm	Pixel Pitch:	0.175 X0.175mm
Display Mode:	Passive Matrix	Display Color:	White / Yellow / Sky Blue
Drive Duty:	1/32 Duty	IC:	SSD1306BZ
Interface:	L2C OLED Display/ OLED Display 12C	Type:	Graphic
Structure:	COG	Thinner Version OLED:	Suitable For Wearable Device

0.91 inch 128x32 Monochrome OLED Display Module Manufacturer Support interface I2C Driver IC SSD1306 with Customized FPC

Product Specifications

Size	0.91 inch
Dot Matrix	128 x 32 Dots
Module dimension	30.0 x 11.5 x 1.26mm
Active Area	22.384 x 5.584 mm
Pixel Size	0.152 x 0.152mm
Pixel Pitch	0.175 x 0.175mm
Display Mode	Passive Matrix

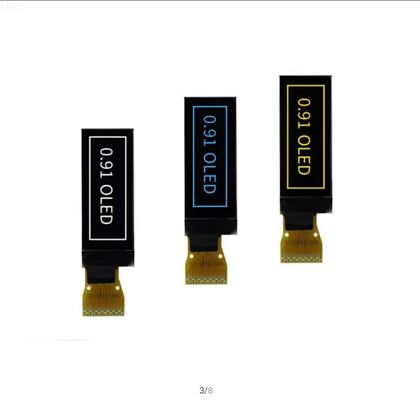

Display Color	White / Yellow / Sky Blue
Drive Duty	1/32 Duty
IC	SSD1306BZ
Interface	I2C OLED Display
Type	Graphic
Structure	COG
Special Feature	Thinner version OLED - Suitable for Wearable Device

Product Description

OLED Display supports I2C interface

Winstar HP12832-65-TSWG4P091 is a popular small OLED display which is made of 128x32 pixels, diagonal size 0.91 inch, making it very suitable for wearable devices. The module is built with SSD1306 controller IC and supports I2C interface with 14 pins FPC pinout.

This COG structure I2C OLED display has a built-in controller with voltage generation requiring only a single 3V power supply. The display module is lightweight, low power and small, making it suitable for wall/meter devices, home applications, Cloud/IoT systems, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instruments, and wearable devices.

The module can operate at temperatures from -40℃ to +80℃ with storage temperatures ranging from -40℃ to +85℃.

Product Drawing

Technical Specifications

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	0	4.0	V
Supply Voltage for Display	VCC	0	16.0	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.3	V
Supply Voltage for Display	VCC	－	7	7.25	8	V
Input High Volt.	VIH	－	0.8×VDD	－	VDDIO	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V

Interface Pin Functions

No.	Symbol	Function
1	C2P	Positive Terminal of the Flying Inverting CapacitorNegative Terminal of the Flying Boost CapacitorThe charge-pump capacitors are required between the terminals. They must be floated when the converter is not used.
2	C2N
3	C1P
4	C1N
5	VBAT	Power Supply for DC/DC Converter Circuit. This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used.
6	NC	No connection
7	VSS	Ground of Logic Circuit. This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground.
8	VDD	Power Supply for Logic. This is a voltage supply pin. It must be connected to external source.
9	RES#	Power Reset for Controller and Driver. This pin is reset signal input. When the pin is low, initialization of the chip is executed.
10	SCL	I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
11	SDA
12	IREF	Current Reference for Brightness Adjustment. This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 12.5μA.
13	VCOMH	Voltage Output High Level for COM Signal. This pin is the input pin for the voltage output high level for COM signals. A capacitor should be connected between this pin and VSS.
14	VCC	Power Supply for OEL Panel. This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.

Frequently Asked Questions

Q: Is there a Touch Panel (Touch Screen) on the display?

A: We can offer you the RTP (Resistive Touch Panel) and CTP (Capacitive Touch Panel) if you need.

Q: What about payment terms?

A: PayPal and credit card can be accepted for sample, T/T paid for mass order. Advance payment percentage can be discussed.

Q: How long can I get the goods?

A: It depends on the quantity. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days.

Q: Can I trust the quality? We want good quality first.

A: Our company has a professional Quality Control Department, and all products are 100% inspected prior to ship. We welcome all the customers from the world visiting our factory for checking any time.
