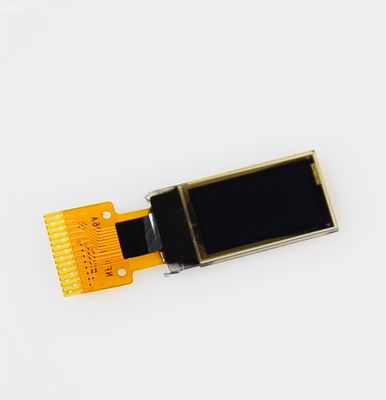

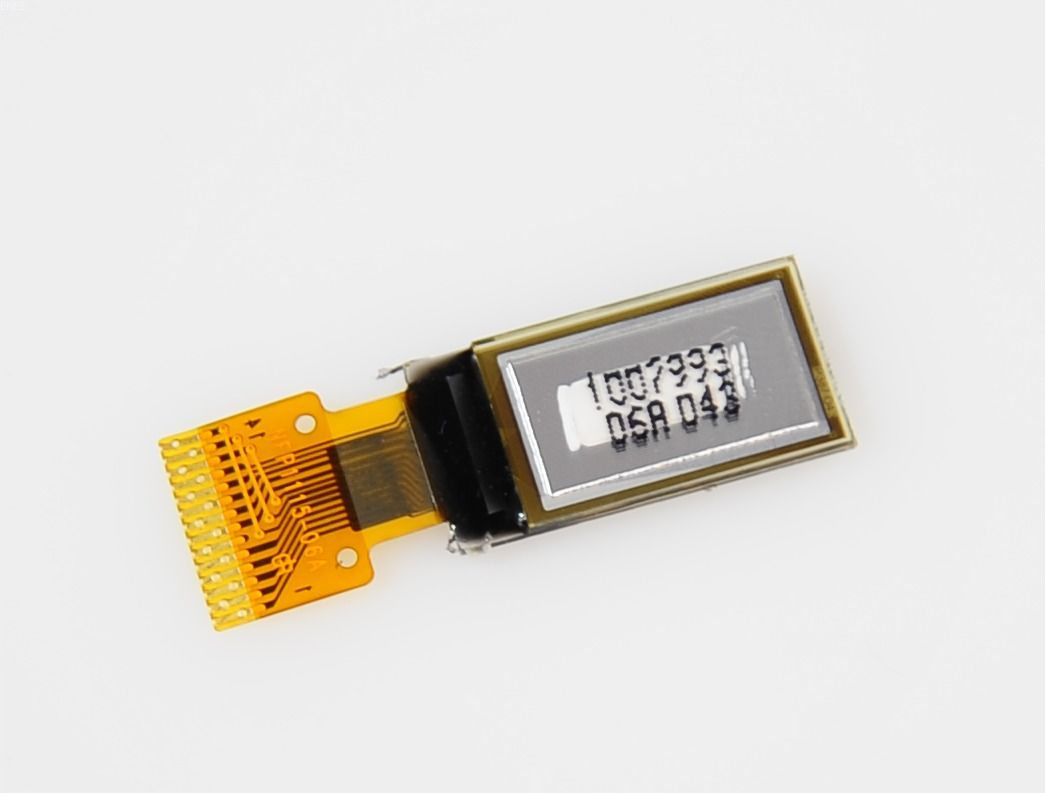

0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD

0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD
0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD
video play

Large Image :  0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: N050-8848TSWYG02-H14
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 2-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 0.5 Inch Display Mode:: Passive Matrix
Display Color: Monochrome (White) Drive Duty: 1/48 Duty
Outline Drawing: According To The Annexed Outline Drawing Number Of Pixels: 88 × 48
Panel Size: 8.928 × 17.1 × 1.227 (mm) Active Area: 6.124 × 11.244 (mm)
Pixel Pitch: 0.128 × 0.128 (mm) Pixel Size: 0.108 × 0.108 (mm)
Highlight:

0.5'' Passive Matrix OLED LCD Display

,

Passive Matrix OLED LCD Display

,

Monochrome OLED LCD

0.5" Passive Matrix OLED LCD Display Monochrome OLED LCD
Product Specifications
Attribute Value
Size 0.5 inch
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/48 Duty
Number of Pixels 88 × 48
Panel Size 8.928 × 17.1 × 1.227 (mm)
Active Area 6.124 × 11.244 (mm)
Pixel Pitch 0.128 × 0.128 (mm)
Pixel Size 0.108 × 0.108 (mm)
Active Area / Memory Mapping & Pixel Construction
0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD 0
Pin Definition
0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD 1
Absolute Maximum Ratings
Parameter Symbol Min Max Unit Notes
Supply Voltage for Logic VDD1 -0.3 3.6 V 1,2
Supply Voltage for Display VPP -0.3 14.5 V 1,2
Supply Voltage for DC/DC VDD2 -0.3 4.8 V 1,2
Operating Temperature TOP -40 85 °C
Storage Temperature TSTG -55 125 °C 3
Life Time (380cd/m²) 10,000 - hour 4
Life Time (300cd/m²) 30,000 - hour 4
Life Time (240cd/m²) 50,000 - hour 4
Frequently Asked Questions
If there is a problem with the product, what is the after-sales service like?
Our after-sales service team provides remote online technical support to resolve any technical problems encountered during use.
How to customize the product?
We offer customization options including module shape, backlight brightness, and LCD interface. Our team will provide personalized solutions based on your specific requirements.
How to get technical support?
Contact our technical team by email for support. We guarantee a response within 24 hours.
Do you provide samples?
Yes, we support sample applications for testing and evaluation before placing an order.
