1.47 Inch IPS TFT LCD Display 172x320Resolution SPl interface GC9307 Driver lC350cd/m2 Customizable FPC TP 1500:1 Contrast Medical Devices

Large Image : 1.47 Inch IPS TFT LCD Display 172x320Resolution SPl interface GC9307 Driver lC350cd/m2 Customizable FPC TP 1500:1 Contrast Medical Devices

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Document:	E147-1732THWIG41-H12.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	US$ 1.2（can be negotiated）
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	500K/mth

Contact Now

Detailed Product Description

LCD Size:	1.47 Inch(Diagonal)	Display Mode:	Normally Black
Resolution:	172(H)RGB X 320(V)	Dot Pitch:	0.0337(H) X 0.0101(V) Mm
Active Area:	17.65(H) X 32.83(V) Mm	Module Size:	19.75(H) X 36.86(V) X1.56(D) Mm
Color Arrangement:	RGB Vtertical Stripe	Interface:	SPI
Drive IC:	GC9307	Luminance(cd/m2):	350 (TYP)
Viewing Direction:	All View	Backlight:	3 White LED
Operating Temp.:	-20℃~ + 70℃	Storage Temp.:	-30℃~+ 80℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	1.47-inch 172x320 High-PPI IPS , Medical-Grade High Contrast (1500:1) , Customizable FPC & Touch Solution

1.47 Inch IPS TFT LCD Display 172x320 Resolution SPI Interface GC9307 Driver IC 350cd/m² Customizable FPC TP 1500:1 Contrast Medical Devices

Product Attributes

Attribute	Value
LCD Size	1.47 inch(Diagonal)
Display Mode	Normally black
Resolution	172(H)RGB x 320(V)
Dot pitch	0.0337(H) x 0.0101(V) mm
Active area	17.65(H) x 32.83(V) mm
Module size	19.75(H) x 36.86(V) x1.56(D) mm
Color arrangement	RGB Vertical stripe
Interface	SPI
Drive IC	GC9307
Luminance(cd/m²)	350 (TYP)
Viewing Direction	All View
Backlight	3 White LED
Operating Temp.	-20℃~ + 70℃
Storage Temp.	-30℃~+ 80℃
Custom Service	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

Product Description

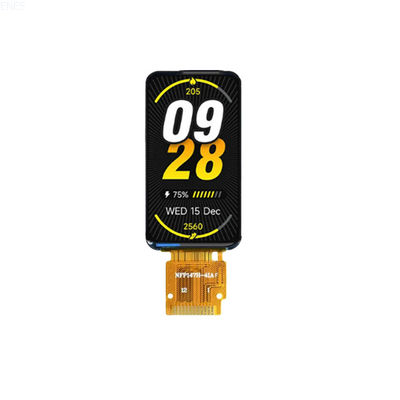

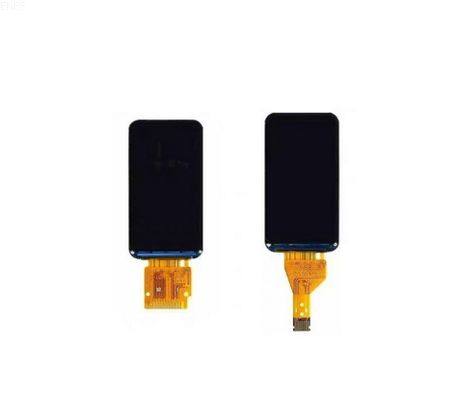

E147-1732THWIG41-H12 is a 172RGBX320 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

Core Selling Points

High-Resolution Clarity: 172×320 pixels with sharp IPS technology for wide viewing angles (80° all directions).
Superior Contrast & Brightness: 1500:1 contrast ratio and 350 cd/m² brightness for vivid colors and deep blacks.
Efficient Interface: 4-wire SPI interface for stable data transfer and low power consumption.
Robust Performance: Operating temperature range of -20°C to 70°C, suitable for varied environments.
Compact Design: Round-rectangle shape with thin profile (1.4mm thickness), ideal for space-constrained applications.

Use Cases

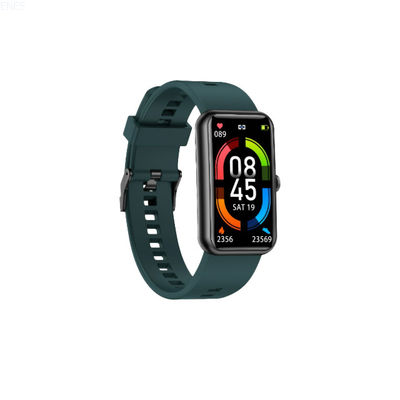

Wearable Devices: Ideal for smartwatches, fitness trackers, and health monitors (heart rate, activity, sleep tracking).
Portable Medical Equipment: Perfect for compact blood pressure monitors, glucose meters, pulse oximeters, and patient monitoring systems.
Handheld Instruments & IoT Devices: Used in industrial handheld tools, portable diagnostic devices, consumer gadgets (e.g., mini displays, remotes), and IoT sensor interfaces requiring clear visual feedback.

Package Specifications

Item	Quantity
Module	480 per Primary Box
Holding Trays (A)	15 per Primary Box
Total Trays (B)	16 per Primary Box (Including 1 Empty Tray)
Primary Box (C)	1~4 per Carton (4 as Major / Maximum)

Frequently Asked Questions

Q: When can I get the quotation?

A: We usually quote within 12 hours after we got your inquiry. If it is very urgent, please call us or contact us via email, Skype or WhatsApp.

Q: What is your warranty?

A: We provide one year warranty.

Q: May I buy samples from you?

A: Yes! You are welcome to place sample order to test our high quality and service.

Q: How to place bulk order?

A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?

A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods rapidly at door. We also ship by economic method such as air cargo and sea cargo, direct line, air mail according to customers' request.

Q: What about the quality of your product?

A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and final quality control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfaction.

Q: Can you provide OEM service?

A: Yes! We can provide professional OEM service.

Q: Do you have any after-sales service?

A: Yes! Our product has professional after-sales service dept. Follow up R.M.A. Items service and upload product firmware and app for you download. If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales directly.
