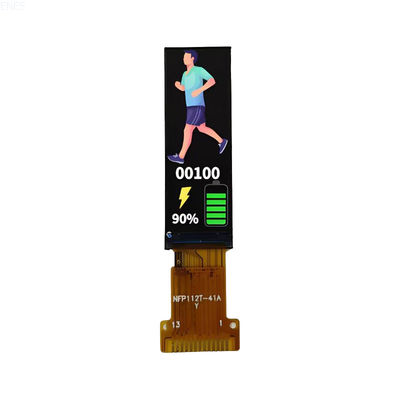

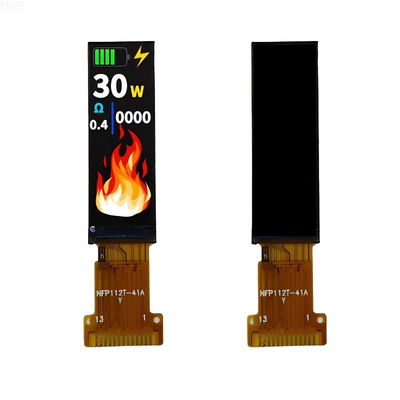

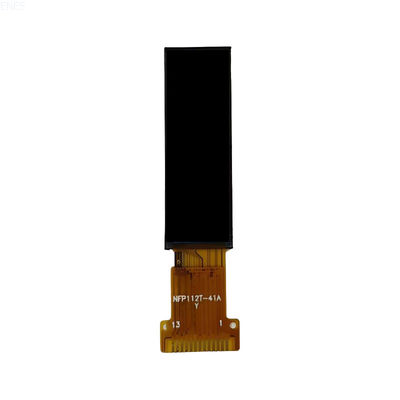

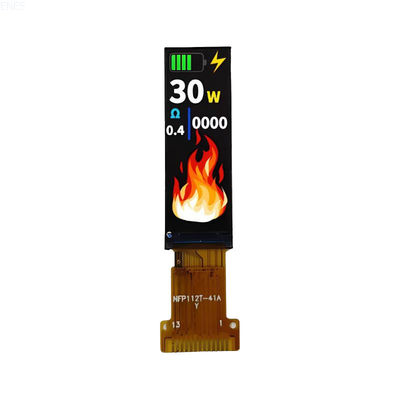

1.12 Inch Full color ALL Tft LCD 350cd Screen 50 X160 Dot Array Display 4 IPS Serial Port Screen IC GC9D01 Display Module SPI Welding 13 Pin

1.12 Inch Full color ALL Tft LCD 350cd Screen 50 X160 Dot Array Display 4 IPS Serial Port Screen IC GC9D01 Display Module SPI Welding 13 Pin
1.12 Inch Full color ALL Tft LCD 350cd Screen 50 X160 Dot Array Display 4 IPS Serial Port Screen IC GC9D01 Display Module SPI Welding 13 Pin
video play

Large Image :  1.12 Inch Full color ALL Tft LCD 350cd Screen 50 X160 Dot Array Display 4 IPS Serial Port Screen IC GC9D01 Display Module SPI Welding 13 Pin

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T112KTBIG41
Payment & Shipping Terms:
Minimum Order Quantity: 1000/PCS
Price: Please enquiry
Packaging Details: All products are packaged in an appropriate and correct manner.
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Size: 1.12inch(Diagonal) Display Mode: Normally Black
Resolution: 50(H)RGB X 160(V) Dot Pitch: 0.2184 (H) X 0.2184(V) Um
Active Area: 8.49(H) X 27.17 (V) Mm Module Size: 10.8(H) X 32.18(V) X2.11(D) Mm
Color Arrangement: RGB Vtertical Stripe Interface: SPI4 LINE
Drive IC: GC9D01 Luminance(cd/m2): 300 (TYP)
Viewing Direction: All View Backlight: 1 White LED
Operating Temp.: -20℃~ + 70℃ Storage Temp.: -30℃~+ 80℃
Weight: 1.1g

1.12 Inch Full Color TFT LCD Display Module

High-quality 1.12-inch diagonal TFT LCD module featuring 50×160 dot array resolution, GC9D01 drive IC, and SPI interface with 13-pin welding.

Product Specifications
LCD Size: 1.12inch (Diagonal)
Display Mode: Normally black
Resolution: 50(H)RGB × 160(V)
Dot Pitch: 0.2184 (H) × 0.2184(V) um
Active Area: 8.49(H) × 27.17(V) mm
Module Size: 10.8(H) × 32.18(V) × 2.11(D) mm
Color Arrangement: RGB Vertical stripe
Interface: SPI 4 LINE
Drive IC: GC9D01
Luminance: 300 cd/m² (TYP)
Viewing Direction: All View
Backlight: 1 White LED
Operating Temp: -20℃ ~ +70℃
Storage Temp: -30℃ ~ +80℃
Weight: 1.1g
Product Overview

The T0112KTBIG41 is a 50RGB×160 dot-matrix TFT LCD module composed of a TFT LCD panel, driver ICs, FPC, and backlight unit. This high-performance display module is designed for applications requiring compact size and excellent visibility.

Mechanical Drawing
1.12 Inch Full color ALL Tft LCD 350cd Screen 50 X160 Dot Array Display 4 IPS Serial Port Screen IC GC9D01 Display Module SPI Welding 13 Pin 0
Pin Definition
NO. Symbol Description
1 NC No Connect
2 NC No Connect
3 SDA SPI interface input/output pin
4 SCL Reset signal (active low) for device initialization
5 RS Display data/command selection pin in 4-line serial interface
6 RESET Device reset signal (active low)
7 CS Chip selection pin (Low enable, High disable)
8 GND Power Ground
9 NC No Connect
10 VDD Power Supply for Analog
11 LEDK LED Cathode
12 LEDA LED Anode
13 GND Power Ground
