10.1'' TFT LCD Display Module With 1200x1920 Dots Resolution MIPI Interface

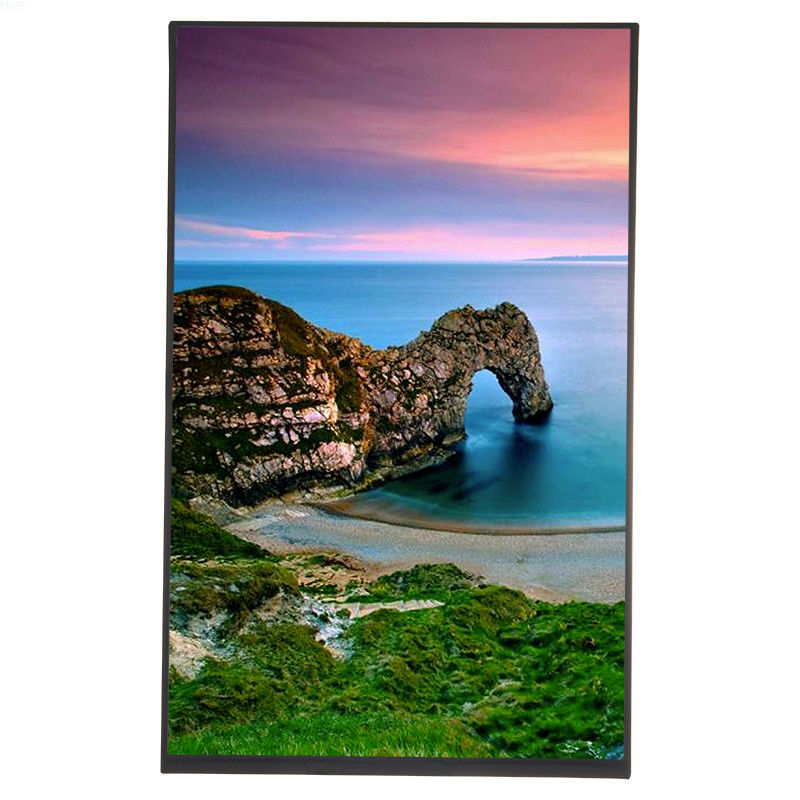

Large Image : 10.1'' TFT LCD Display Module With 1200x1920 Dots Resolution MIPI Interface

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T101WU02

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	10.1TFT	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Resolution:	1200(horizontal)*1920(Vertical)	Interface:	MIPI
Connect Type:	Connector	Color Depth:	16.7M
Technology Type:	A-Si	Pixel Configuration:	R.G.B.-Vertical Stripe
Display Mode:	Normally Black	Driver IC:	OTA7290B
Surface Treatment:	HC	Viewing Direction:	ALL
LCM (W X H X D) (mm):	162.32X243.58*4.75	Active Area(mm):	216.576X135.36
With /Without TSP:	Without TSP	LED Numbers:	32LEDs (8*4)
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Luminance:	330cd/m2
Highlight:	10.1in TFT LCD Display , 1200x1920 Dots TFT LCD Display , MIPI Interface tft lcd display module

10.1'' TFT LCD Display Module With 1200x1920 Dots Resolution MIPI Interface

Product Attributes

Attribute	Value
Size	10.1TFT
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Resolution	1200(horizontal)*1920(Vertical)
Interface	MIPI
Connect type	Connector
Color Depth	16.7M
Technology type	a-Si
Pixel Configuration	R.G.B.-Vertical Stripe
Display Mode	Normally Black
Driver IC	OTA7290B
Surface Treatment	HC
Viewing Direction	ALL
LCM (W x H x D) (mm)	162.32X243.58*4.75
Active Area(mm)	216.576X135.36
With /Without TSP	Without TSP
LED Numbers	32LEDs (8*4)
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Luminance	330cd/m2

Product Description

This display module is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. The resolution of a 10.1" contains 1200(RGB)*1920 dots and can display up to 16.7M colors.

Special Features

This 10.1-inch display screen brings a refined visual experience with a high resolution of 1200×1920. Vehicle information and multimedia content are displayed in every detail. The LVDS interface achieves high-speed and stable data transmission, and in combination with the OTA7290B driver chip, the screen has a high refresh rate and smooth display. The TFT LCD screen based on IPS technology has a wide viewing angle and accurate color reproduction, creating an immersive and clear intuitive in-car display effect for the driver.

Applications

Digital products
Instrument and meter
Automobile electronics
Communication machine
Medical machine
Security machine
Household electrical appliances

Company Advantages

Prompt reply within 12 hours
Small minimum order quantity accepted
More than 15 years experience in LCD R&D and manufacturing
Strong R and D team supports perfect customized projects
Short lead-time
ISO 9001 and RoHS Directive-compliant certified factory supplied
TFT LCD module, touch panel, PCB with SMT/COB solutions
Fabulous after-sale service

Custom Design OEM/ODM Solutions

We supports both standard and customized products and can put your logo on the products. Our experienced Research and Development team will support technical questions. ODM/OEM products are warmly welcome.

Quality Control

Our technicians and QC team test the original products one by one to ensure every products are perfect one before packing and shipment. We will test goods strictly according to our standard inspection before shipment. If exceed this standard, clients can ask for returning and get new.

Packing Terms

Protect product with the PolyFoam and multi layer paper board
Special protect carton for exporting product
Per customer's requirements

Input/Output Terminals

No.	Symbol	Description
1	GND	Ground
2-4	LEDK	BACKLIGHT CATHODE
5	NC	NC
6-8	LEDA	BACKLIGHT ANODE
9	NC	NC
10	TP-VDD	TP POWER SUPPLY
11	TP-RET	TP Reset pin for
12	TP-INT	TP Communication interrupt for
13	TP-SDA	TP SPI data input
14	TP-SCL	TP SPI clock
15	GND	Ground
16-17	NC	NC
18-20	VDD3.3V	POWER SUPPLY
21	GND	Ground
22	D0P	MIPI DSI differential clock pair
23	D0N	MIPI DSI differential clock pair
24	GND	Ground
25	D1P	MIPI DSI differential clock pair
26	D1N	MIPI DSI differential clock pair
27	GND	Ground
28	CLKP	MIPI DSI differential clock pair
29	CLKN	MIPI DSI differential clock pair
30	GND	Ground
31	D2P	MIPI DSI differential clock pair
32	D2N	MIPI DSI differential clock pair
33	GND	Ground
34	D3P	MIPI DSI differential clock pair
35	D3N	MIPI DSI differential clock pair
36	GND	Ground
37	BIST-NC	NC
38	RESET	Reset pin
39	LCD-ID0	LCD_ID CIRCUIT
40	LCD-ID1	LCD_ID CIRCUIT
41-44	NC	NC
